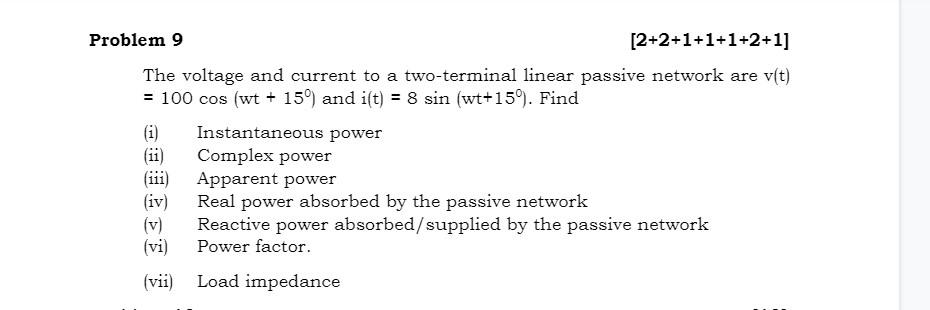

Problem 9 [2+2+1+1+1+2+1] The voltage and current to a two-terminal linear passive network are v(t) = 100 cos (wt + 159)

[answerhappygod]

Problem 9 2 2 1 1 1 2 1 The Voltage And Current To A Two Terminal Linear Passive Network Are V T 100 Cos Wt 159 1 (30.16 KiB) Viewed 43 times

Problem 9 [2+2+1+1+1+2+1] The voltage and current to a two-terminal linear passive network are v(t) = 100 cos (wt + 159) and iſt) = 8 sin (wt+15%). Find Instantaneous power (ii) Complex power (iii) Apparent power (iv) Real power absorbed by the passive network (v) Reactive power absorbed / supplied by the passive network (vi) Power factor. (vii) Load impedance
