MAPS G(W,X,Y,Z)=Em(0,1,2,3,4,6,10,11)+D(13,14) Give the result as a product of sums! Turn the K-Map in the procedures pa

[answerhappygod]

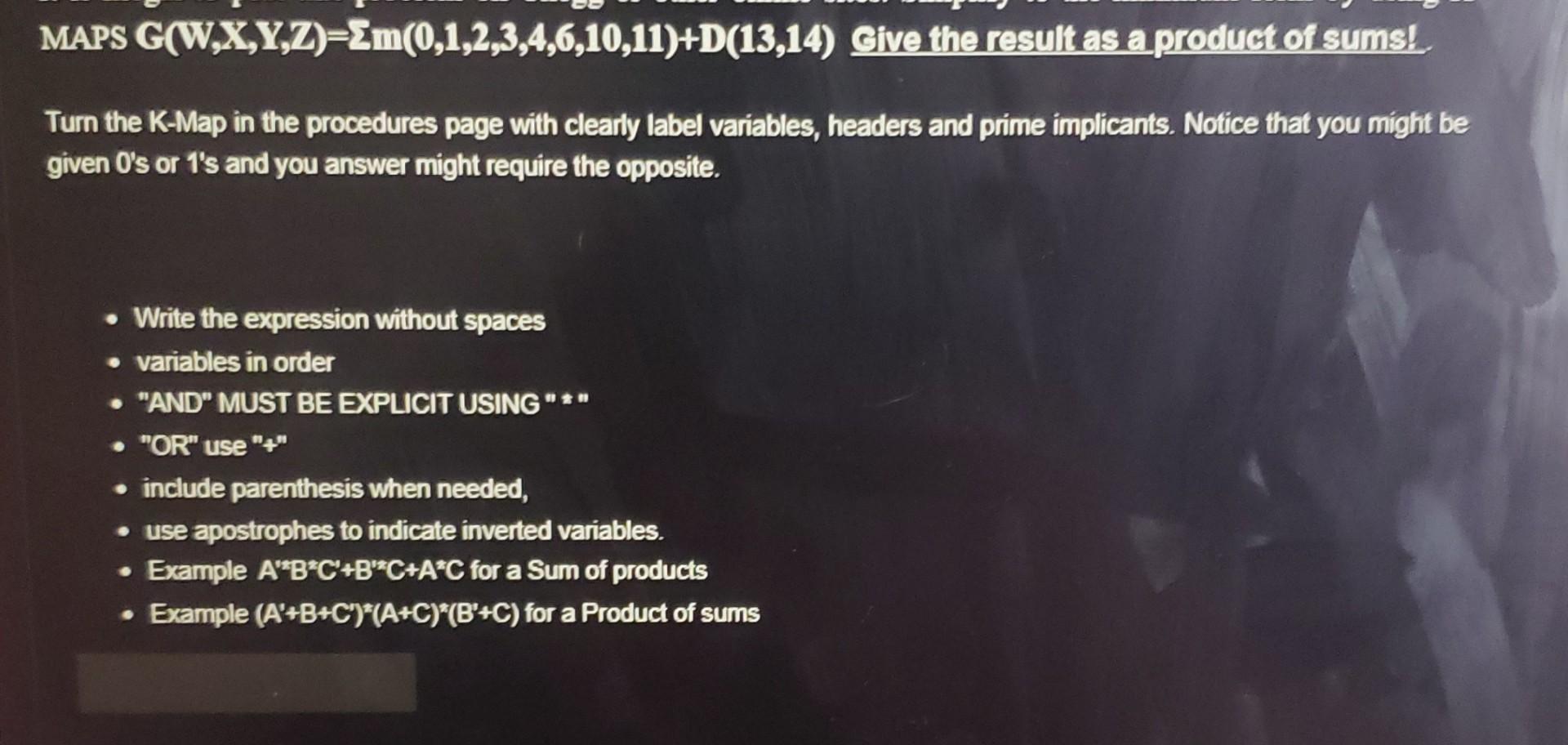

Maps G W X Y Z Em 0 1 2 3 4 6 10 11 D 13 14 Give The Result As A Product Of Sums Turn The K Map In The Procedures Pa 1 (137.68 KiB) Viewed 55 times

Simplify to the minimum form by using K MAPS
MAPS G(W,X,Y,Z)=Em(0,1,2,3,4,6,10,11)+D(13,14) Give the result as a product of sums! Turn the K-Map in the procedures page with clearly label variables, headers and prime implicants. Notice that you might be given O's or 1's and you answer might require the opposite. • Write the expression without spaces • variables in order "AND" MUST BE EXPLICIT USING"*" • "OR" use "4" • include parenthesis when needed, • use apostrophes to indicate inverted variables. Example A'B*C+B'*C+AⓇC for a Sum of products • Example (A'+B+C)*(A+C)*(B+C) for a Product of sums
