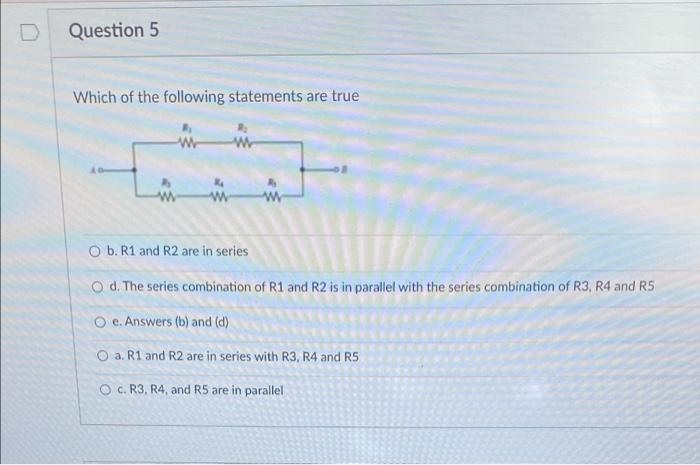

Question 5 Which of the following statements are true w w w w O b. R1 and R2 are in series O d. The series combination of R1 and R2 is in parallel with the series combination of R3, R4 and R5 Oe. Answers (b) and (d) O a. R1 and R2 are in series with R3, R4 and R5 O c. R3, R4, and R5 are in parallel

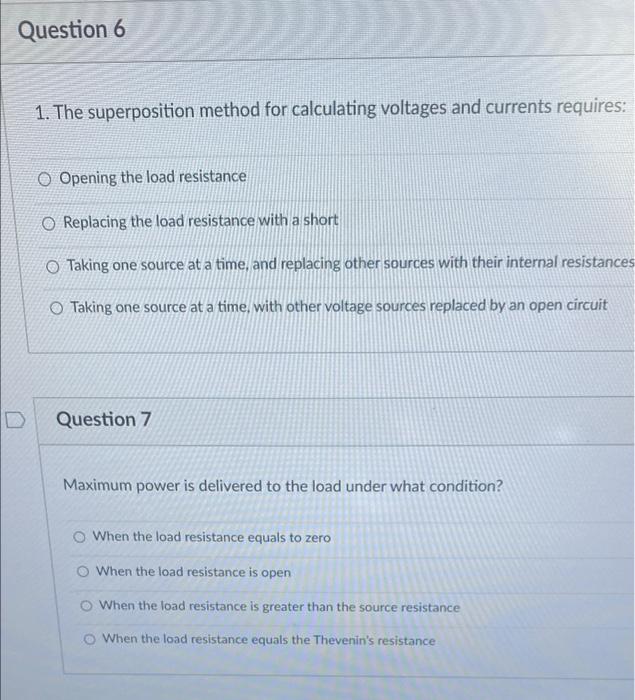

Question 6 1. The superposition method for calculating voltages and currents requires: Opening the load resistance O Replacing the load resistance with a short O Taking one source at a time, and replacing other sources with their internal resistances Taking one source at a time with other voltage sources replaced by an open circuit Question 7 Maximum power is delivered to the load under what condition? When the load resistance equals to zero o When the load resistance is open When the load resistance is greater than the source resistance When the load resistance equals the Thevenin's resistance
