Question 1 3 P Maximum Power Transfer Occurs When The Load Resistance Equals The Thevenin Resistance O True O False Que 1 (50.03 KiB) Viewed 39 times
Question 1 3 P Maximum Power Transfer Occurs When The Load Resistance Equals The Thevenin Resistance O True O False Que 2 (53.13 KiB) Viewed 39 times

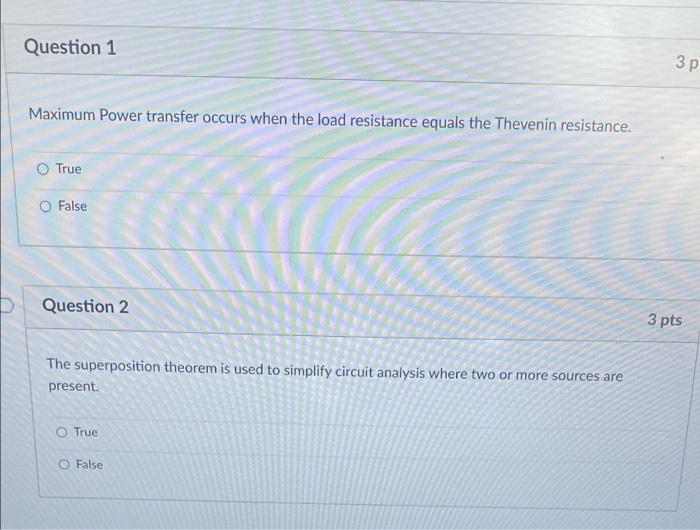

Question 1 3 p Maximum Power transfer occurs when the load resistance equals the Thevenin resistance. O True O False Question 2 3 pts The superposition theorem is used to simplify circuit analysis where two or more sources are present O True O False

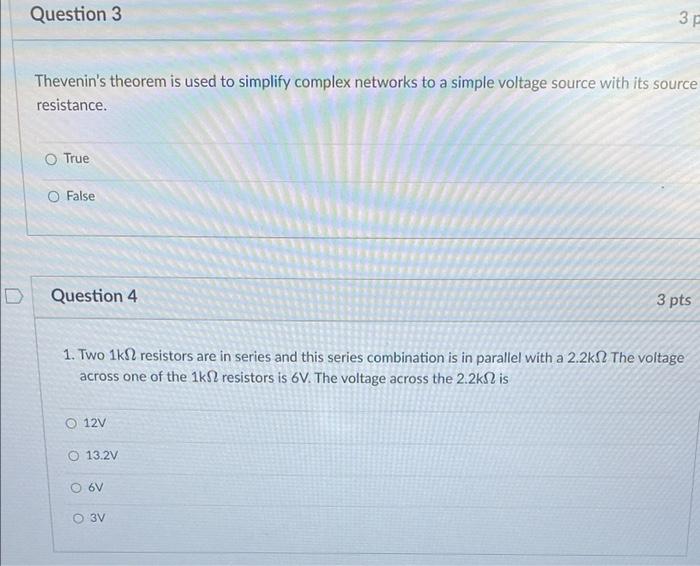

Question 3 Зр Thevenin's theorem is used to simplify complex networks to a simple voltage source with its source resistance. O True O False Question 4 3 pts 1. Two 1k2 resistors are in series and this series combination is in parallel with a 2.2k The voltage across one of the 1k2 resistors is 6V. The voltage across the 2.26N2 is O 12V O 13.2V O 6V 03V
