Introduction: In this lab you will design three passive filters: low pass, high pass, and band-pass. Each filter will be

[answerhappygod]

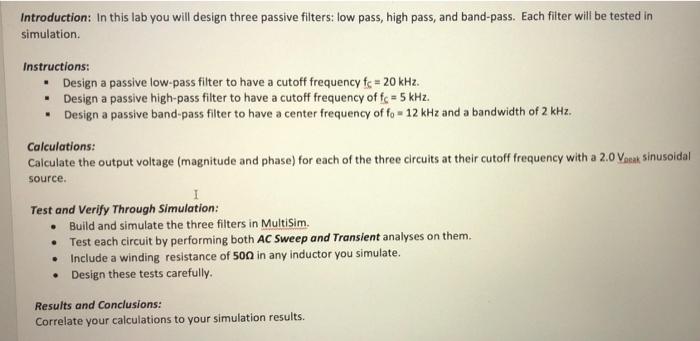

Introduction In This Lab You Will Design Three Passive Filters Low Pass High Pass And Band Pass Each Filter Will Be 1 (31.57 KiB) Viewed 44 times

Introduction: In this lab you will design three passive filters: low pass, high pass, and band-pass. Each filter will be tested in simulation Instructions: • Design a passive low-pass filter to have a cutoff frequency fs = 20 kHz. • Design a passive high-pass filter to have a cutoff frequency of fe = 5 kHz. • Design a passive band-pass filter to have a center frequency of fo = 12 kHz and a bandwidth of 2 kHz. Calculations: Calculate the output voltage (magnitude and phase) for each of the three circuits at their cutoff frequency with a 2.0 Vesak sinusoidal source. I Test and Verify Through Simulation: • Build and simulate the three filters in Multisim. • Test each circuit by performing both AC Sweep and Transient analyses on them. • Include a winding resistance of son in any inductor you simulate. • Design these tests carefully, Results and Conclusions: Correlate your calculations to your simulation results.
