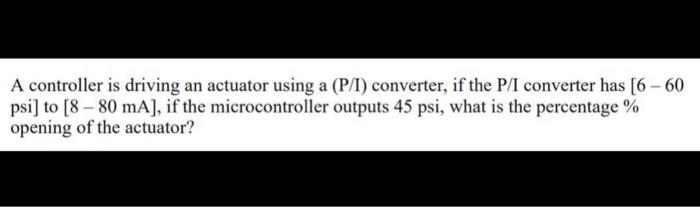

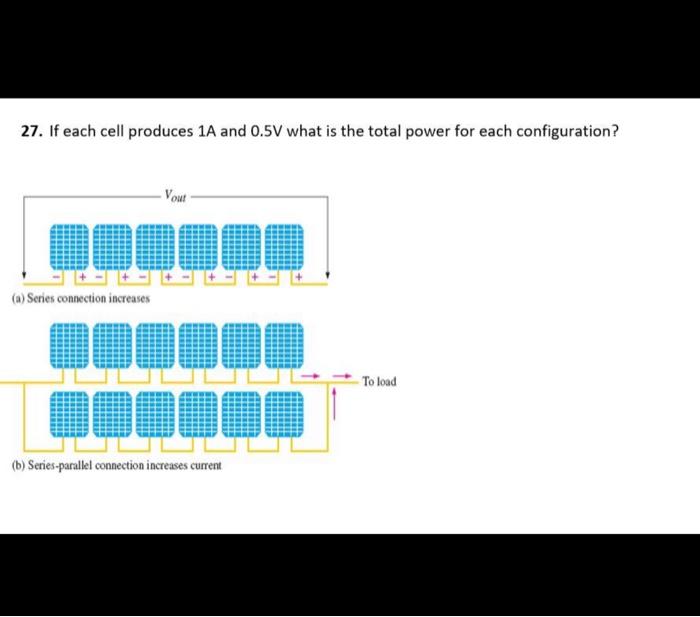

27. If each cell produces 1A and 0.5V what is the total power for each configuration? Vout (a) Series connection increases To load (b) Series-parallel connection increases current

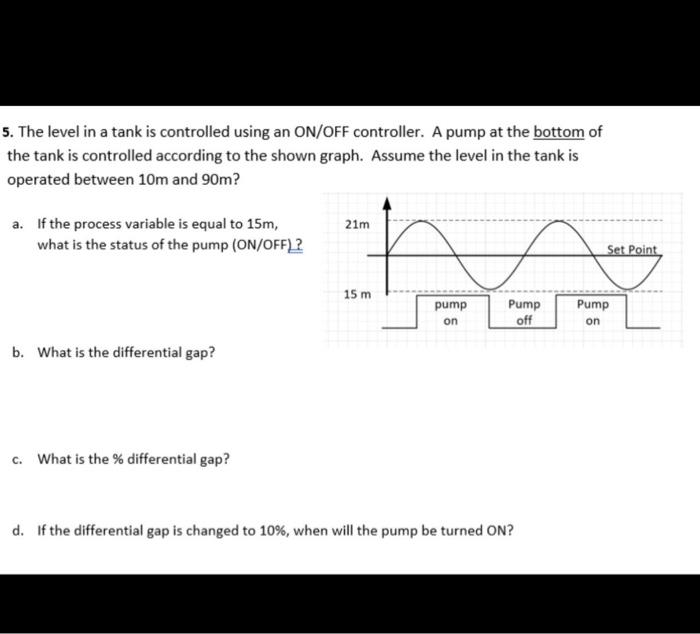

5. The level in a tank is controlled using an ON/OFF controller. A pump at the bottom of the tank is controlled according to the shown graph. Assume the level in the tank is operated between 10m and 90m? 21m a. If the process variable is equal to 15m, what is the status of the pump (ON/OFF)? Set Point 15 m pump on Pump off Pump on b. What is the differential gap? c. What is the % differential gap? d. If the differential gap is changed to 10%, when will the pump be turned ON?
