20 V 22F R1 16 MPF102 + 22 20F 0.553 Du R2 HH Rs Figure 1 From the data sheet K = 3.24 mA/V!. VIN=Vp=-3V, and let Io = 3

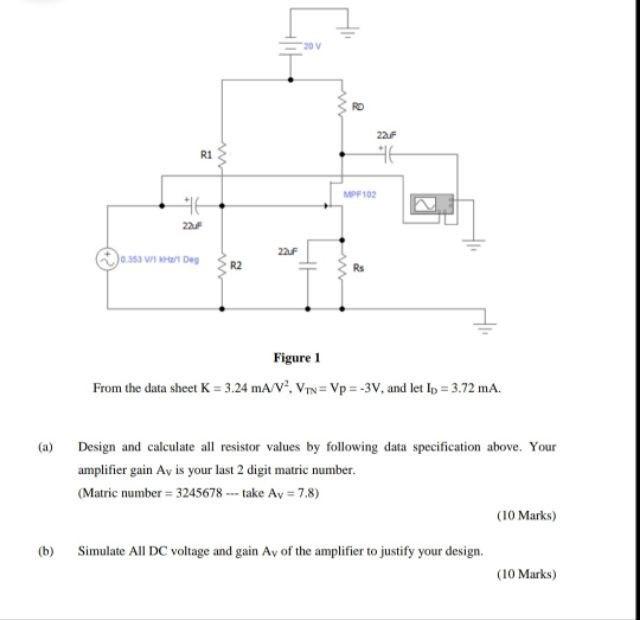

20 V 22F R1 16 MPF102 + 22 20F 0.553 Du R2 HH Rs Figure 1 From the data sheet K = 3.24 mA/V!. VIN=Vp=-3V, and let Io = 3.72 mA. (a) Design and calculate all resistor values by following data specification above. Your amplifier gain Ay is your last 2 digit matric number. (Matric number = 3245678 ---take Av = 7.8) (10 Marks) (b) Simulate All DC voltage and gain Ay of the amplifier to justify your design, (10 Marks)
