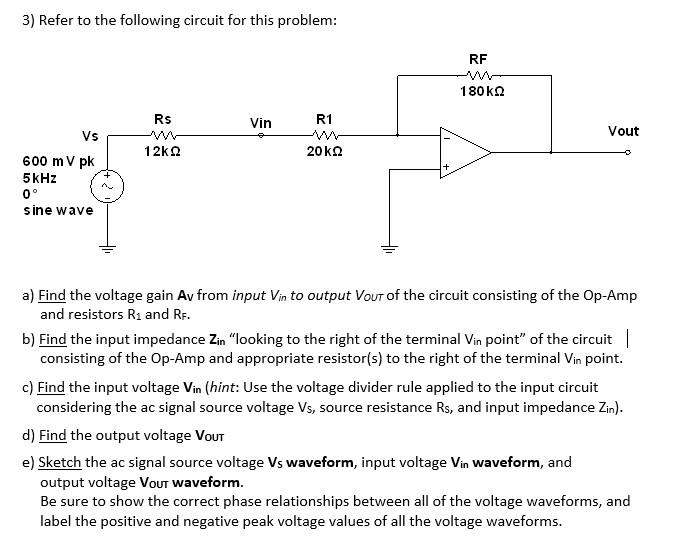

3) Refer to the following circuit for this problem: RF M 180kΩ Vin Rs M 12kΩ R1 W 20kΩ Vout + Vs 600 m V pk 5kHz 0° sine
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3) Refer to the following circuit for this problem: RF M 180kΩ Vin Rs M 12kΩ R1 W 20kΩ Vout + Vs 600 m V pk 5kHz 0° sine
3) Refer to the following circuit for this problem: RF M 180kΩ Vin Rs M 12kΩ R1 W 20kΩ Vout + Vs 600 m V pk 5kHz 0° sine wave a) Find the voltage gain Ay from input Vin to output Vout of the circuit consisting of the Op-Amp and resistors Rs and RF. b) Find the input impedance Zin "looking to the right of the terminal Vin point" of the circuit consisting of the Op-Amp and appropriate resistor(s) to the right of the terminal Vin point. c) Find the input voltage Vin (hint: Use the voltage divider rule applied to the input circuit considering the ac signal source voltage Vs, source resistance Rs, and input impedance Zin). d) Find the output voltage Vout e) Sketch the ac signal source voltage Vs waveform, input voltage Vin waveform, and output voltage Vout waveform. Be sure to show the correct phase relationships between all of the voltage waveforms, and label the positive and negative peak voltage values of all the voltage waveforms.
