3 4 Grades Consider The Circuit Shown In Figure 7 In This Circuit The Input Of 8 Bits Is Added To The Old Value Of 1 (35.39 KiB) Viewed 59 times
Please give complete answer

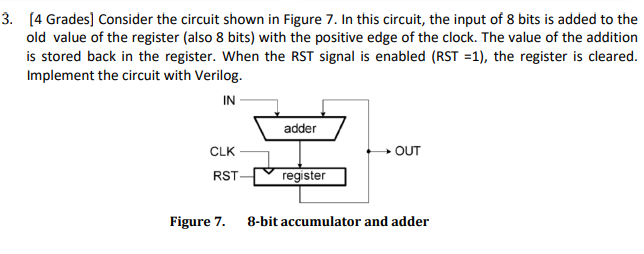

3. [4 Grades) Consider the circuit shown in Figure 7. In this circuit, the input of 8 bits is added to the old value of the register (also 8 bits) with the positive edge of the clock. The value of the addition is stored back in the register. When the RST signal is enabled (RST =1), the register is cleared. Implement the circuit with Verilog. IN adder OUT CLK RST register Figure 7. 8-bit accumulator and adder
