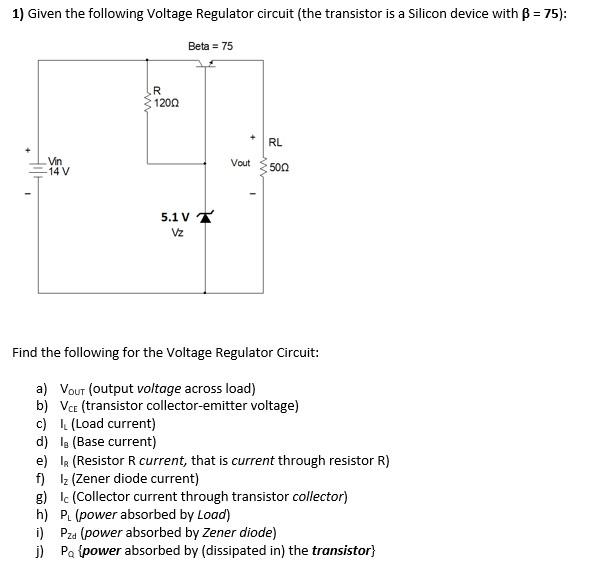

1) Given the following Voltage Regulator circuit (the transistor is a Silicon device with B = 75): Beta = 75 R 1200 RL +

[answerhappygod]

1 Given The Following Voltage Regulator Circuit The Transistor Is A Silicon Device With B 75 Beta 75 R 1200 Rl 1 (36.48 KiB) Viewed 52 times

1) Given the following Voltage Regulator circuit (the transistor is a Silicon device with B = 75): Beta = 75 R 1200 RL + Vin -14 V Vout 500 1 5.1 V Vz Find the following for the Voltage Regulator Circuit: a) Vout (output voltage across load) b) Vc (transistor collector-emitter voltage) c) (Load current) d) 1 (Base current) e) IR (Resistor R current, that is current through resistor R) f) Iz (Zener diode current) g) I (Collector current through transistor collector) h) PL (power absorbed by Load) i) Pza (power absorbed by Zener diode) j) Pa {power absorbed by (dissipated in) the transistor}
