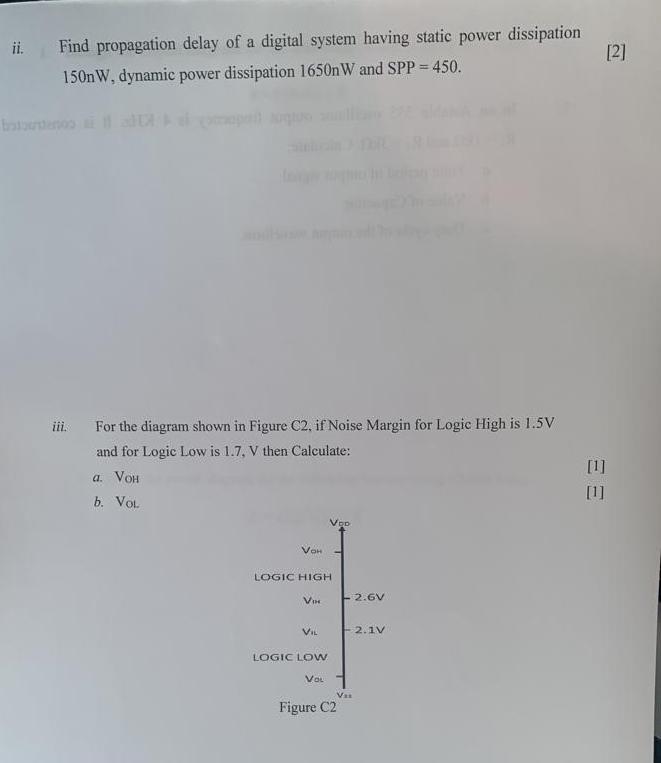

ii. [2] Find propagation delay of a digital system having static power dissipation 150 W, dynamic power dissipation 1650 W and SPP = 450. iii. For the diagram shown in Figure C2, if Noise Margin for Logic High is 1.5V and for Logic Low is 1.7. V then Calculate: a. VOH b. VOL. [1] [1] Vgo Von LOGIC HIGH VI 2.6V V- 2.1V LOGIC LOW Vou Va Figure C2
