Task 1 In the following circuits, use appropriate circuit theorems to calculate required voltages and currents. For Circ

Post by answerhappygod »

Task 1 In The Following Circuits Use Appropriate Circuit Theorems To Calculate Required Voltages And Currents For Circ 1
Task 1 In The Following Circuits Use Appropriate Circuit Theorems To Calculate Required Voltages And Currents For Circ 1 (67.66 KiB) Viewed 77 times

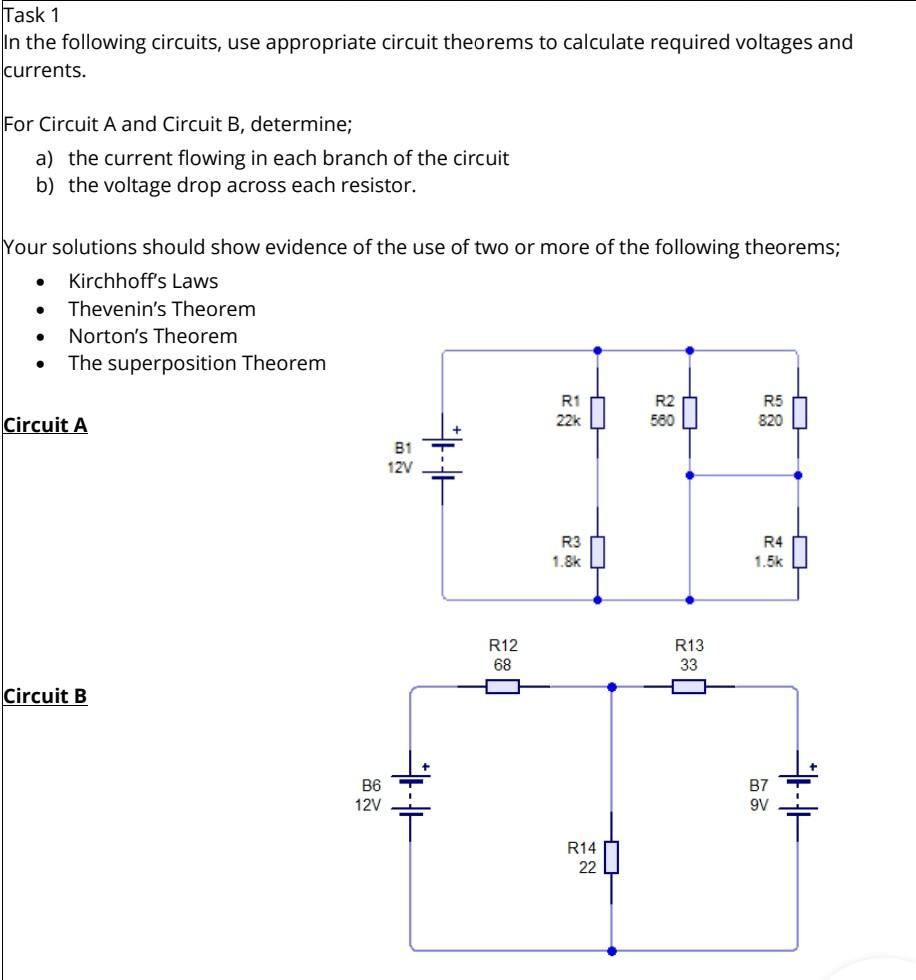

Task 1 In the following circuits, use appropriate circuit theorems to calculate required voltages and currents. For Circuit A and Circuit B, determine; a) the current flowing in each branch of the circuit b) the voltage drop across each resistor. Your solutions should show evidence of the use of two or more of the following theorems; Kirchhoff's Laws Thevenin's Theorem Norton's Theorem The superposition Theorem R1 22k R2 580 R5 820 Circuit A B1 12V +- R3 1.8k R4 1.5k R12 68 R13 33 Circuit B B6 12V B7 9V O R14 22
