PROBLEM 3: (20 pts) 10-4 S/m, The electrical constitutive parameters of moist earth at a frequency of 200 MHz are roughl

[answerhappygod]

Problem 3 20 Pts 10 4 S M The Electrical Constitutive Parameters Of Moist Earth At A Frequency Of 200 Mhz Are Roughl 1 (15.57 KiB) Viewed 53 times

Problem 3 20 Pts 10 4 S M The Electrical Constitutive Parameters Of Moist Earth At A Frequency Of 200 Mhz Are Roughl 2 (10.21 KiB) Viewed 53 times

Problem 3 20 Pts 10 4 S M The Electrical Constitutive Parameters Of Moist Earth At A Frequency Of 200 Mhz Are Roughl 3 (8.46 KiB) Viewed 53 times

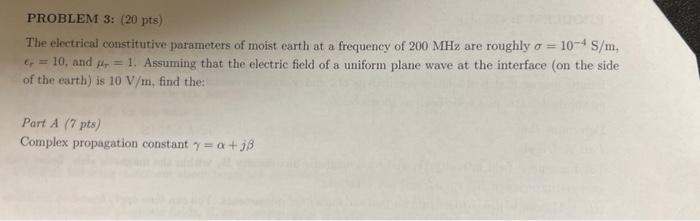

PROBLEM 3: (20 pts) 10-4 S/m, The electrical constitutive parameters of moist earth at a frequency of 200 MHz are roughly o = 6 = 10, and p = 1. Assuming that the electric field of a uniform plane wave at the interface (on the side of the earth) is 10 V/m, find the Part A (7 pts) Complex propagation constant y = a +8

Part B (7 pts) Distance through which the wave must travel before the magnitude of the electric field reduces to 0.1 V/m.

Part C (6 pts) Signal wavelength inside the earth (in meters).
