(a) A PCM communication system multiplexes two audio channels and one control channel. The channels have the following s

Post by answerhappygod »

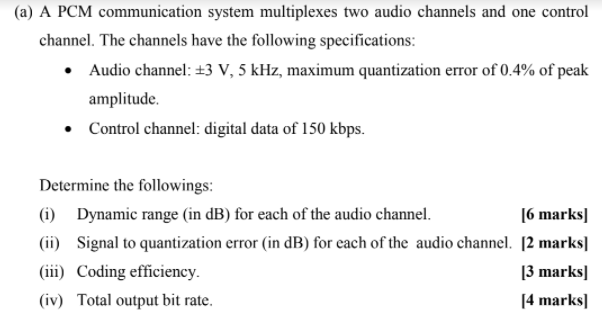

A A Pcm Communication System Multiplexes Two Audio Channels And One Control Channel The Channels Have The Following S 1
A A Pcm Communication System Multiplexes Two Audio Channels And One Control Channel The Channels Have The Following S 1 (58.27 KiB) Viewed 78 times
(a) A PCM communication system multiplexes two audio channels and one control channel. The channels have the following specifications: Audio channel: +3 V, 5 kHz, maximum quantization error of 0.4% of peak amplitude. Control channel: digital data of 150 kbps. Determine the followings: (1) Dynamic range (in dB) for each of the audio channel. [6 marks] (ii) Signal to quantization error (in dB) for each of the audio channel. [2 marks] (iii) Coding efficiency. [3 marks] (iv) Total output bit rate. [4 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
