Figure 1 shows a three stage amplifier circuit. Sin = -15 dB AMPLIFIER AMPLIFIER AMPLIFIER 2 3 Nin = -50 dB AP, = 8 dB N

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Figure 1 shows a three stage amplifier circuit. Sin = -15 dB AMPLIFIER AMPLIFIER AMPLIFIER 2 3 Nin = -50 dB AP, = 8 dB N

Post by answerhappygod »

Figure 1 Shows A Three Stage Amplifier Circuit Sin 15 Db Amplifier Amplifier Amplifier 2 3 Nin 50 Db Ap 8 Db N 1
Figure 1 Shows A Three Stage Amplifier Circuit Sin 15 Db Amplifier Amplifier Amplifier 2 3 Nin 50 Db Ap 8 Db N 1 (51.38 KiB) Viewed 39 times

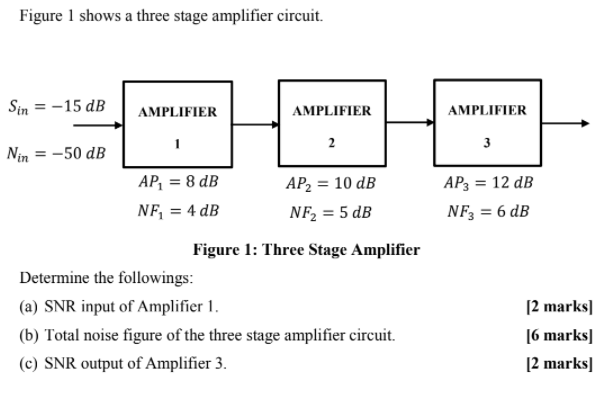

Figure 1 shows a three stage amplifier circuit. Sin = -15 dB AMPLIFIER AMPLIFIER AMPLIFIER 2 3 Nin = -50 dB AP, = 8 dB NF, = 4 dB AP2 = 10 dB NF2 = 5 dB AP3 = 12 dB NF3 = 6 dB = Figure 1: Three Stage Amplifier Determine the followings: (a) SNR input of Amplifier 1. (b) Total noise figure of the three stage amplifier circuit. (C) SNR output of Amplifier 3. [2 marks] [6 marks] [2 marks]
