245 Q.BT 246 (a) 0 For the circuit shown in Figure Q.B7a, calculate the output voltage Vo given the input voltages show

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

245 Q.BT 246 (a) 0 For the circuit shown in Figure Q.B7a, calculate the output voltage Vo given the input voltages show

Post by answerhappygod »

245 Q Bt 246 A 0 For The Circuit Shown In Figure Q B7a Calculate The Output Voltage Vo Given The Input Voltages Show 1
245 Q Bt 246 A 0 For The Circuit Shown In Figure Q B7a Calculate The Output Voltage Vo Given The Input Voltages Show 1 (43.17 KiB) Viewed 44 times

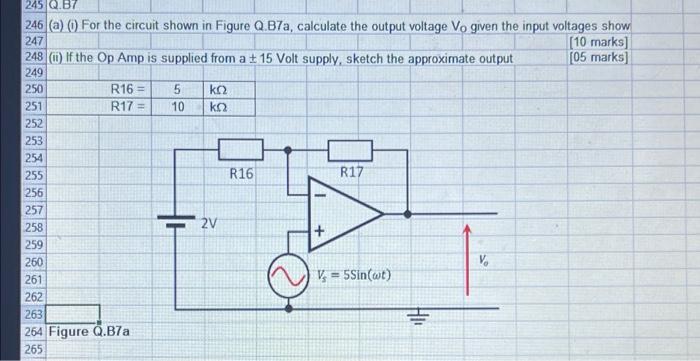

245 Q.BT 246 (a) 0 For the circuit shown in Figure Q.B7a, calculate the output voltage Vo given the input voltages show 247 [10 marks] 248 m)If the Op Amp is supplied from a + 15 Volt supply, sketch the approximate output [05 marks] 249 250 R16 = 5 ko 251 R17 = 10 ko 252 253 254 255 R16 R17 256 257 258 2V + 259 260 V. 261 V = 5Sin(wt) 262 263 264 Figure Q.B7a 265 HD
