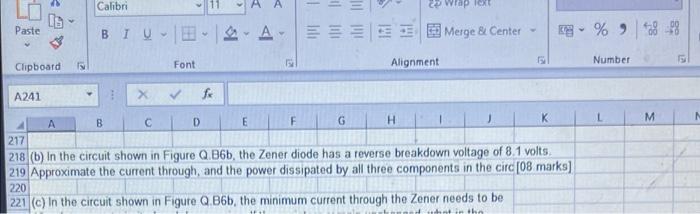

Calibri 11 wrap at 1 lili Paste BIU -A- 三三三三三國 Merge & Center Kg - % 978-98 Clipboard Number Font Alignment A241 X M N A B со Е G H 217 218 (6) In the circuit shown in Figure Q.B6b, the Zener diode has a reverse breakdown voltage of 8.1 volts 219 Approximate the current through, and the power dissipated by all three components in the circ [08 marks] 220 221 (c) in the circuit shown in Figure Q.B6b, the minimum current through the Zener needs to be that in thn

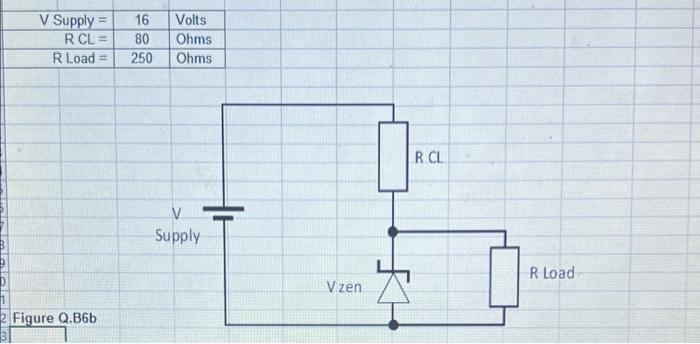

V Supply = RCL = R Load 16 80 250 Volts Ohms Ohms R CL V Supply R Load D Vzen 2 Figure Q.B6b
