- 4 15 Points For The Following Waveform Q2 Is The Output Of A D Latch And Q3 Is The Output Of A Negative Edge Trigge 1 (152.98 KiB) Viewed 40 times
4. (15 points) For the following waveform, Q2 is the output of a D-latch, and Q3 is the output of a negative-edge trigge
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. (15 points) For the following waveform, Q2 is the output of a D-latch, and Q3 is the output of a negative-edge trigge

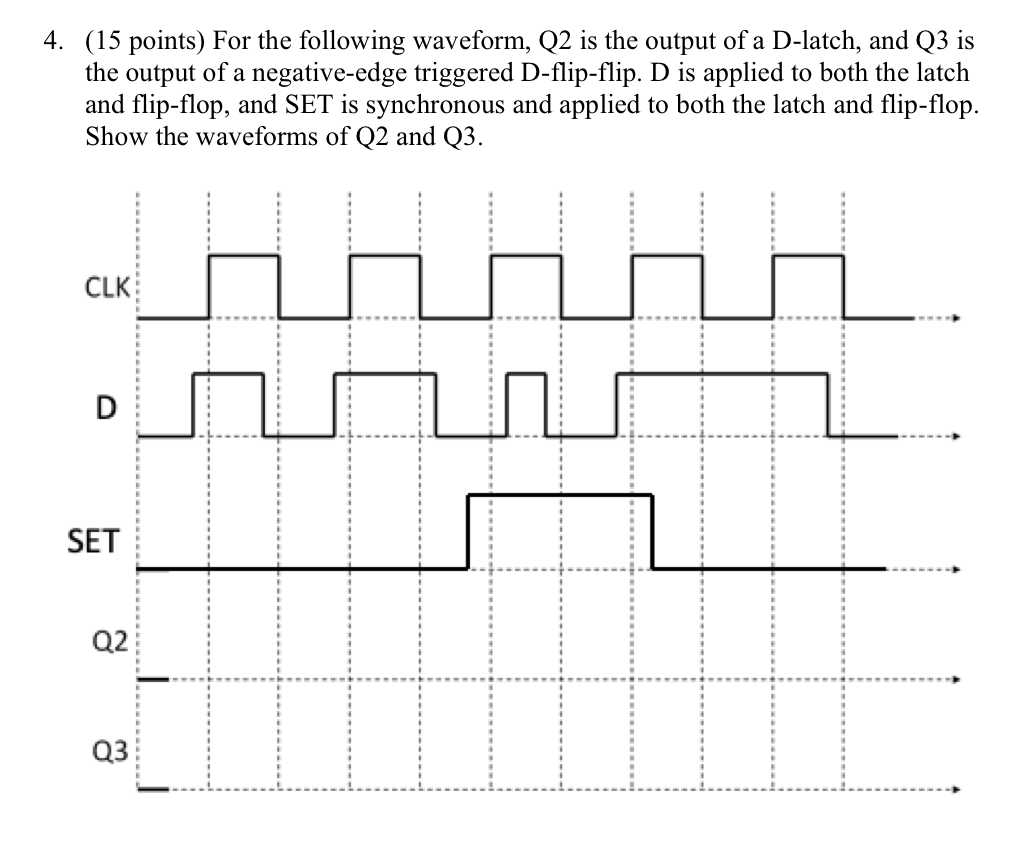

4. (15 points) For the following waveform, Q2 is the output of a D-latch, and Q3 is the output of a negative-edge triggered D-flip-flip. D is applied to both the latch and flip-flop, and SET is synchronous and applied to both the latch and flip-flop. Show the waveforms of Q2 and Q3. CLK D SET Q2 Q3
