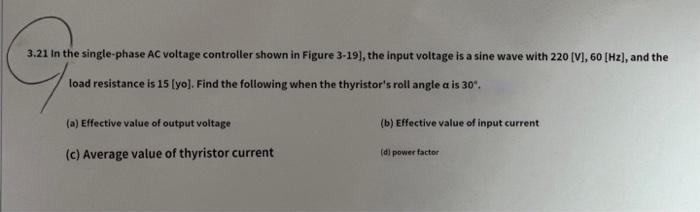

yu 3.21 in the single-phase AC voltage controller shown in Figure 3-19), the input voltage is a sine wave with 220[V], 60 (Hz), and the load resistance is 15 (yo). Find the following when the thyristor's roll angle a is 30". (a) Effective value of output voltage (b) Effective value of input current (c) Average value of thyristor current (dl power factor

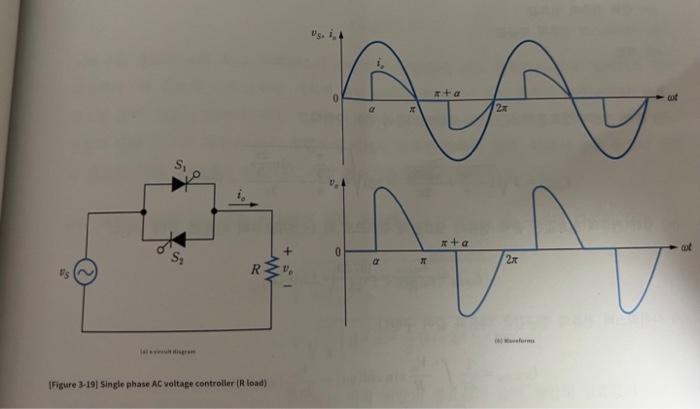

of A 23 I Si a * + a 2л Figure 3-19] Single phase AC voltage controller IR load)
