please explain every step. also does current flow through the 3k
ohm resistor ?

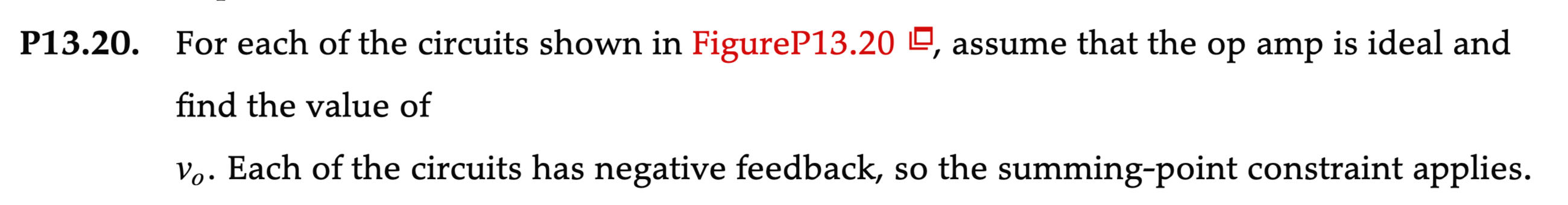

P13.20. For each of the circuits shown in FigureP13.20 C, assume that the op amp is ideal and find the value of Vo. Each of the circuits has negative feedback, so the summing-point constraint applies.

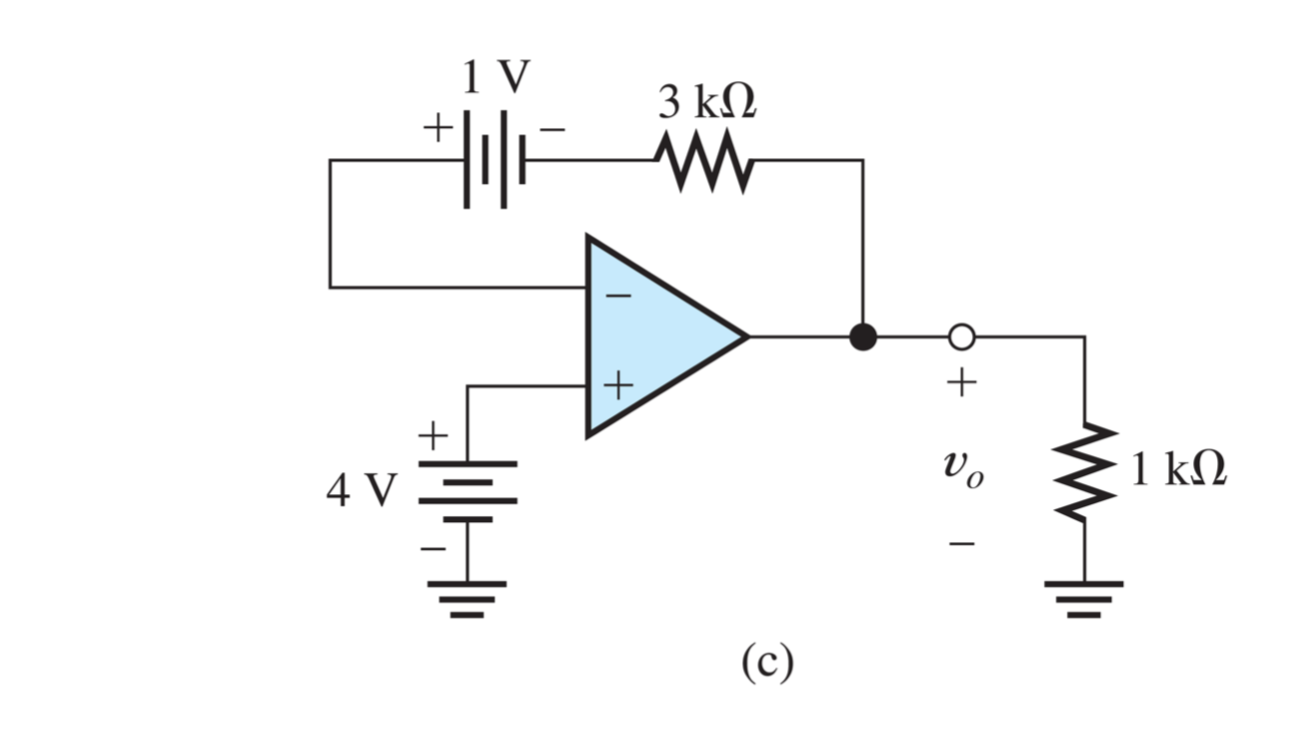

1 V 3k2 w 오+ + + 4V Uo 1k2 WH (c)
