P7.32. Solution of a single-stub matching problem by using the Smith chart. A trans- mission line of characteristic impe

[answerhappygod]

P7 32 Solution Of A Single Stub Matching Problem By Using The Smith Chart A Trans Mission Line Of Characteristic Impe 1 (30.39 KiB) Viewed 40 times

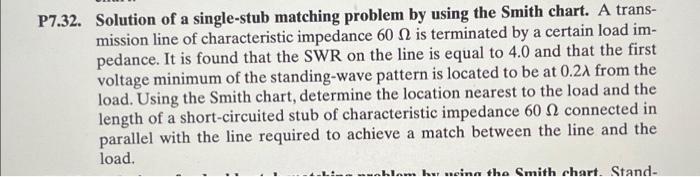

P7.32. Solution of a single-stub matching problem by using the Smith chart. A trans- mission line of characteristic impedance 60 A is terminated by a certain load im- pedance. It is found that the SWR on the line is equal to 4.0 and that the first voltage minimum of the standing-wave pattern is located to be at 0.21 from the load. Using the Smith chart, determine the location nearest to the load and the length of a short-circuited stub of characteristic impedance 60 connected in parallel with the line required to achieve a match between the line and the load. hlaw w reina the Smith chart. Stand-
