Design a phase-lead compensator for the system in Figure Q2 to meet the following-step response specifications: a 5% set

Post by answerhappygod »

Design A Phase Lead Compensator For The System In Figure Q2 To Meet The Following Step Response Specifications A 5 Set 1
Design A Phase Lead Compensator For The System In Figure Q2 To Meet The Following Step Response Specifications A 5 Set 1 (72.85 KiB) Viewed 42 times

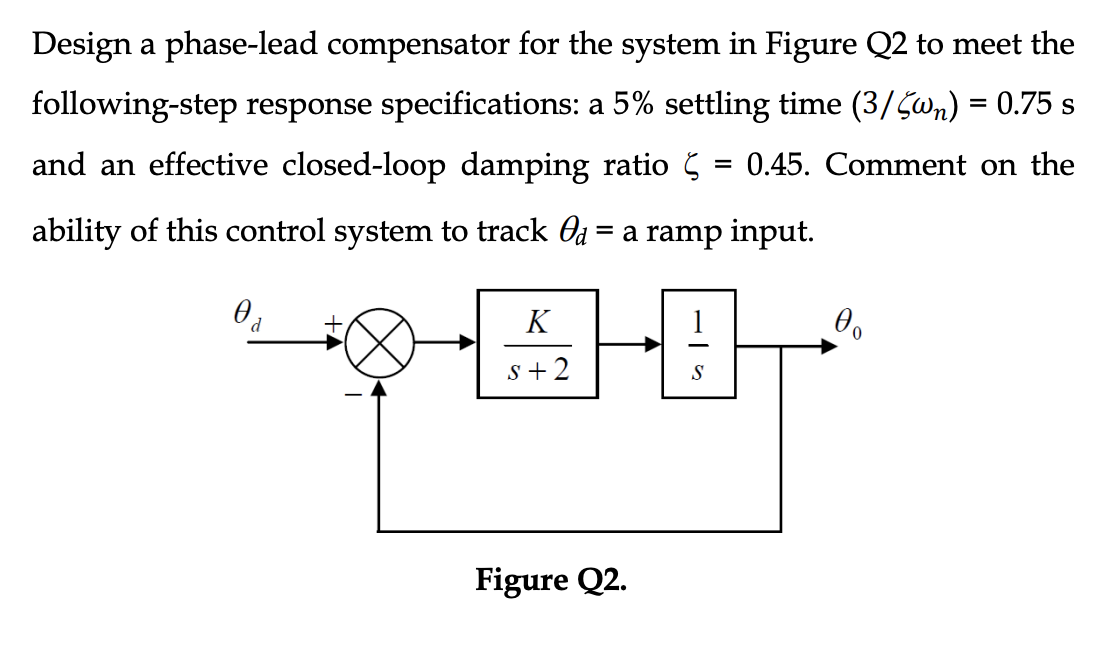

Design a phase-lead compensator for the system in Figure Q2 to meet the following-step response specifications: a 5% settling time (3/6wn) = 0.75 s and an effective closed-loop damping ratio Ś = 0.45. Comment on the ability of this control system to track Od = a ramp input. = od K 0. A 5+2 S Figure Q2.
