1. (15 points) A T-flipflop works as follows. On the rising edge of clock, the content of a T-flipflop toggles if T=1, a

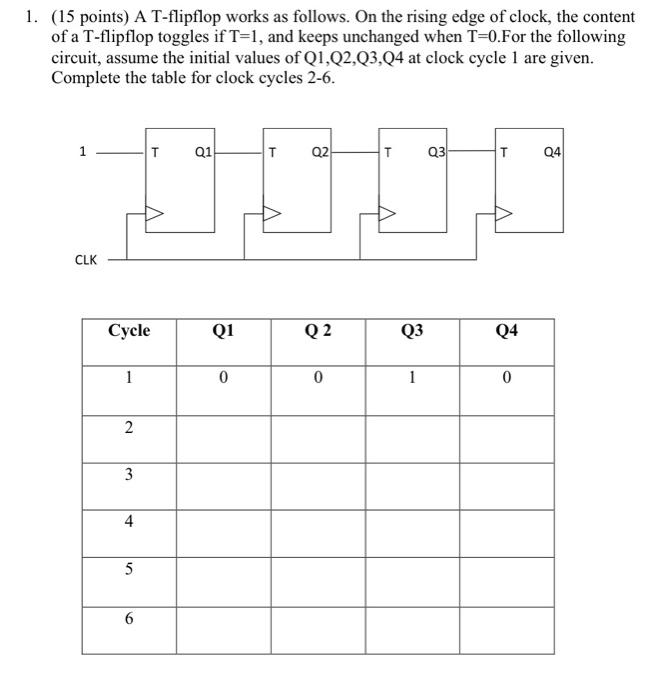

1. (15 points) A T-flipflop works as follows. On the rising edge of clock, the content of a T-flipflop toggles if T=1, and keeps unchanged when T=0.For the following circuit, assume the initial values of Q1,Q2,Q3,Q4 at clock cycle 1 are given. Complete the table for clock cycles 2-6. T 01 T Q2 T Q3 Q4 CLK Cycle Q1 Q2 Q3 Q4 1 0 0 1 0 2 3 3 4 5 6
