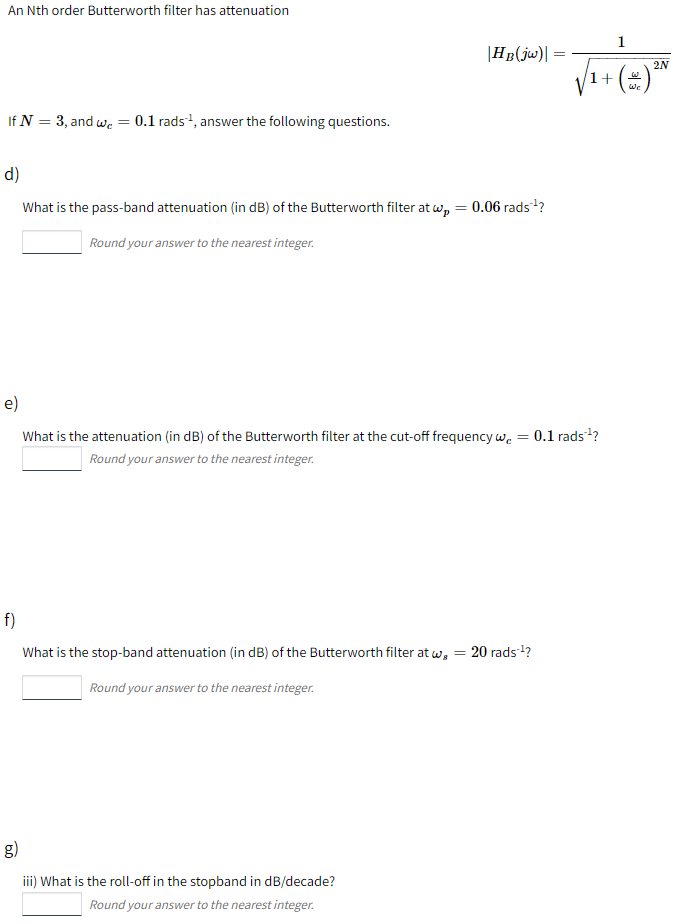

An Nth order Butterworth filter has attenuation 1 |HD(jw) = = 2N V1+()" النا If N = 3, and we = 0.1 rads+, answer the following questions. d) What is the pass-band attenuation (in dB) of the Butterworth filter at w, = 0.06 rads?? Round your answer to the nearest integer. e) What is the attenuation (in dB) of the Butterworth filter at the cut-off frequency we = 0.1 rads?? Round your answer to the nearest integer. f) What is the stop-band attenuation (in dB) of the Butterworth filter at wg = 20 radst? = Round your answer to the nearest integer. DO iii) What is the roll-off in the stopband in dB/decade? Round your answer to the nearest integer.
