Automation And Automatic Control Laboratory Designing a PID Controller Using MATLAB's SISO Tool Assignments S + 3 ps = S

[answerhappygod]

Automation And Automatic Control Laboratory Designing A Pid Controller Using Matlab S Siso Tool Assignments S 3 Ps S 1 (46.48 KiB) Viewed 66 times

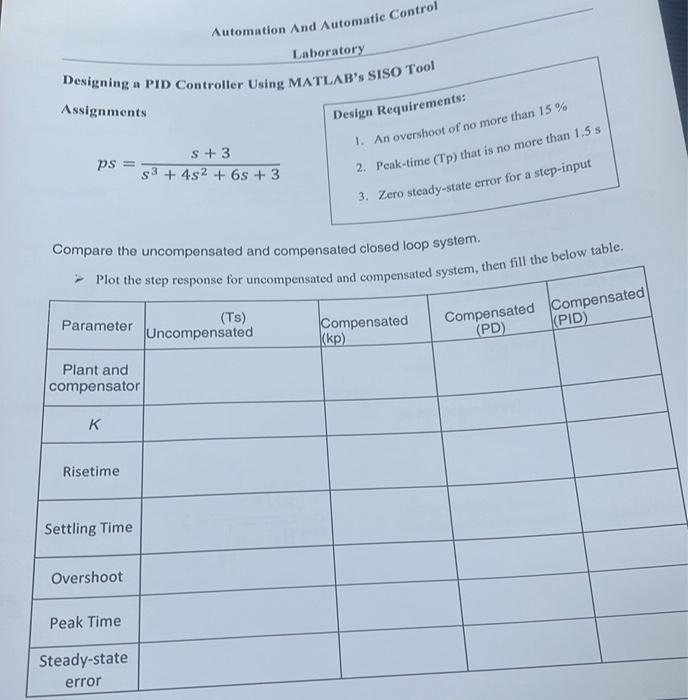

Automation And Automatic Control Laboratory Designing a PID Controller Using MATLAB's SISO Tool Assignments S + 3 ps = S3 + 482 + 6s + 3 Design Requirements: 1. An overshoot of no more than 15 % 2. Peak-time (Tp) that is no more than 1.5 s 3. Zero steady-state error for a step-input Compare the uncompensated and compensated closed loop system. Plot the step response for uncompensated and compensated system, then fill the below table. Parameter (Ts) Uncompensated Compensated Kkp) Compensated Compensated (PD) K(PID) Plant and compensator K Risetime Settling Time Overshoot Peak Time Steady-state error
