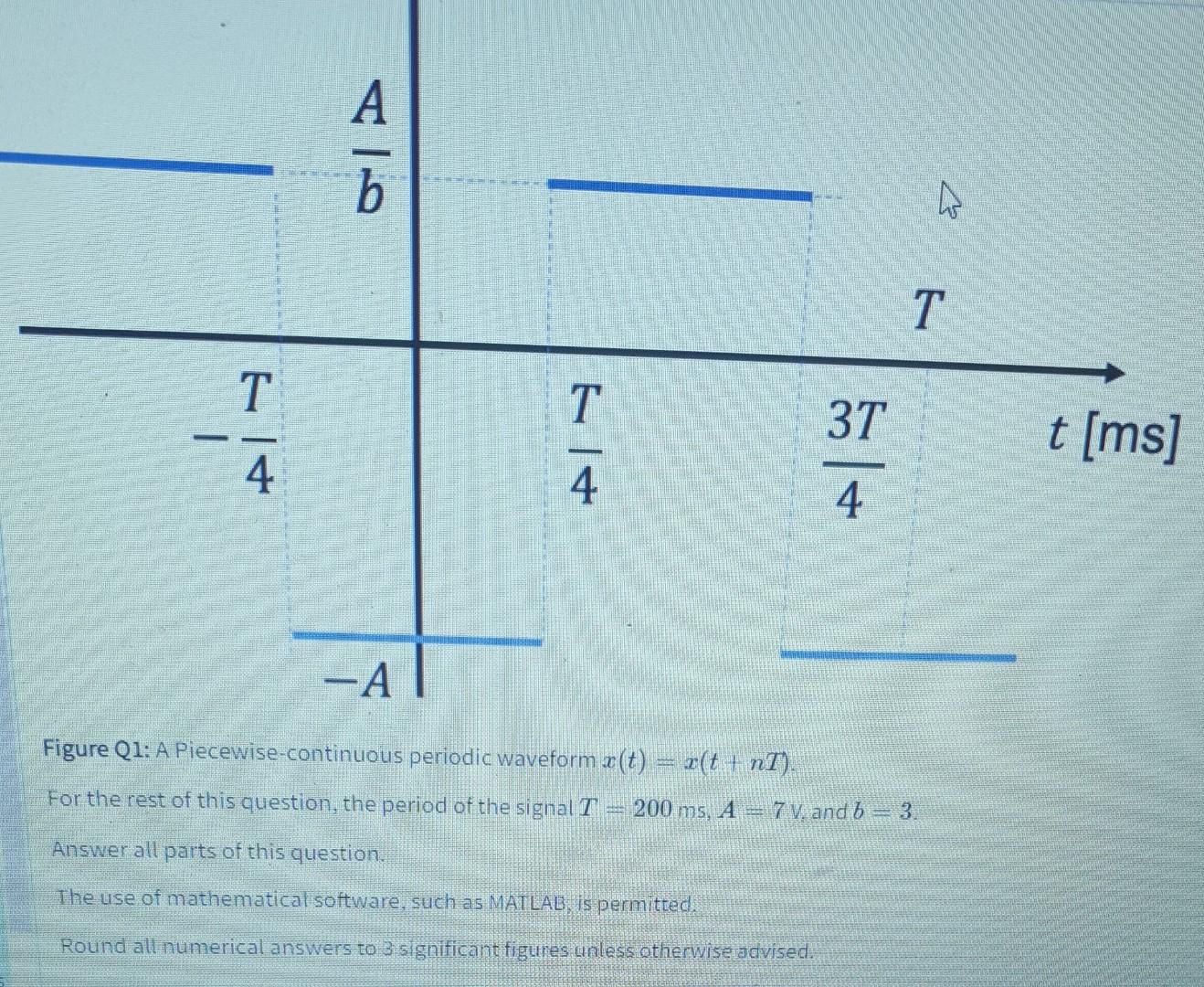

A ch T T T 3T t [ms] 4 4 4 -A Figure Q1: A Piecewise-continuous periodic waveform r(t) = 2(t+ nT). For the rest of this question, the period of the signal T 200 ms, A - 7 v. and h = 3. Answer all parts of this question. The use of mathematical software, such as MATLAB is permitted, Round all numerical answers to 3 significant figures unless otherwise advised.

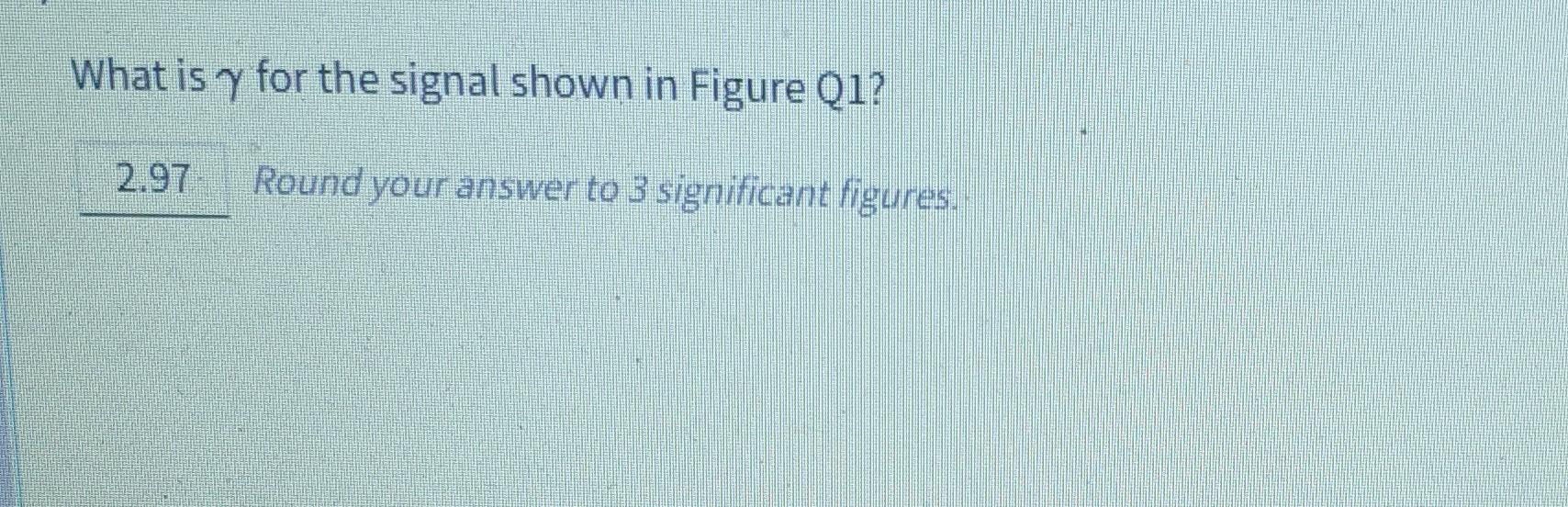

What is y for the signal shown in Figure Q1? 2.97 Round your answer to 3 significant figures.
