Figure Q3b shows a capacitor consists of two parallel conductor plates with a separation of 'd' meter and each conductor

Post by answerhappygod »

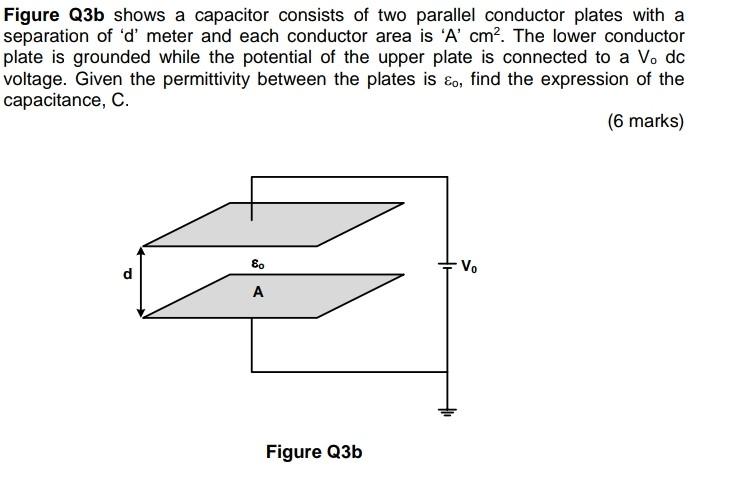

Figure Q3b Shows A Capacitor Consists Of Two Parallel Conductor Plates With A Separation Of D Meter And Each Conductor 1
Figure Q3b Shows A Capacitor Consists Of Two Parallel Conductor Plates With A Separation Of D Meter And Each Conductor 1 (35.54 KiB) Viewed 85 times
help asp
Figure Q3b shows a capacitor consists of two parallel conductor plates with a separation of 'd' meter and each conductor area is 'A' cm². The lower conductor plate is grounded while the potential of the upper plate is connected to a V. dc voltage. Given the permittivity between the plates is Eo, find the expression of the capacitance, C. (6 marks) 80 Vo A Figure Q3b
