Problem 4 Four ideal diodes are connected as shown with a sinusoidal voltage source of 20V(RMS) at 50 Hz. Three resistor

Post by answerhappygod »

Problem 4 Four Ideal Diodes Are Connected As Shown With A Sinusoidal Voltage Source Of 20v Rms At 50 Hz Three Resistor 1
Problem 4 Four Ideal Diodes Are Connected As Shown With A Sinusoidal Voltage Source Of 20v Rms At 50 Hz Three Resistor 1 (37.6 KiB) Viewed 58 times

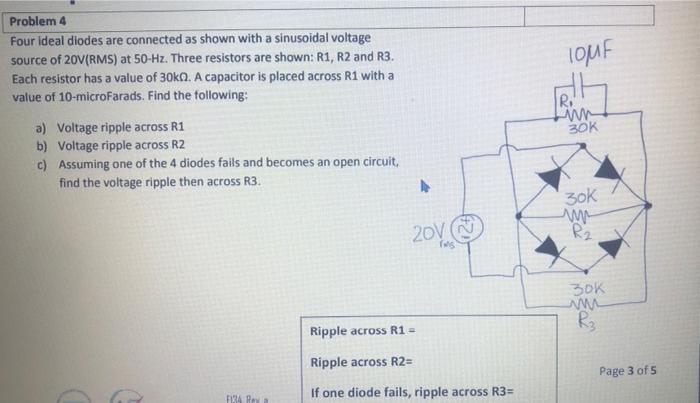

Problem 4 Four ideal diodes are connected as shown with a sinusoidal voltage source of 20V(RMS) at 50 Hz. Three resistors are shown: R1, R2 and R3. Each resistor has a value of 30k0. A capacitor is placed across R1 with a value of 10-microfarads. Find the following: Пои R w 30K a) Voltage ripple across R1 b) Voltage ripple across R2 c) Assuming one of the 4 diodes fails and becomes an open circuit, find the voltage ripple then across R3. 3ok 20V AN R2 ros SOK w Ripple across R1 - Ripple across R2= Page 3 of 5 If one diode fails, ripple across R3= F134 Rey
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
