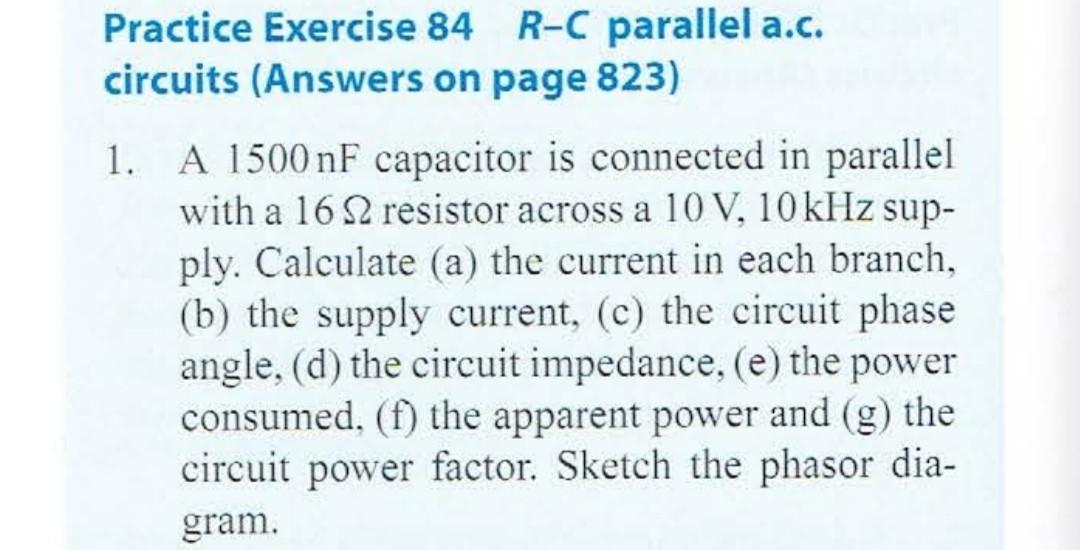

Practice Exercise 84 R-C parallel a.c. circuits (Answers on page 823) 1. A 1500 nF capacitor is connected in parallel with a 16S2 resistor across a 10 V, 10 kHz sup- ply. Calculate (a) the current in each branch, (b) the supply current, (c) the circuit phase angle, (d) the circuit impedance, (e) the power consumed, (f) the apparent power and (g) the circuit power factor. Sketch the phasor dia- gram.
