Practice Exercise 83 R-L parallel a.c. circuits (Answers on page 822) 1. A 3082 resistor is connected in parallel with a

Post by answerhappygod »

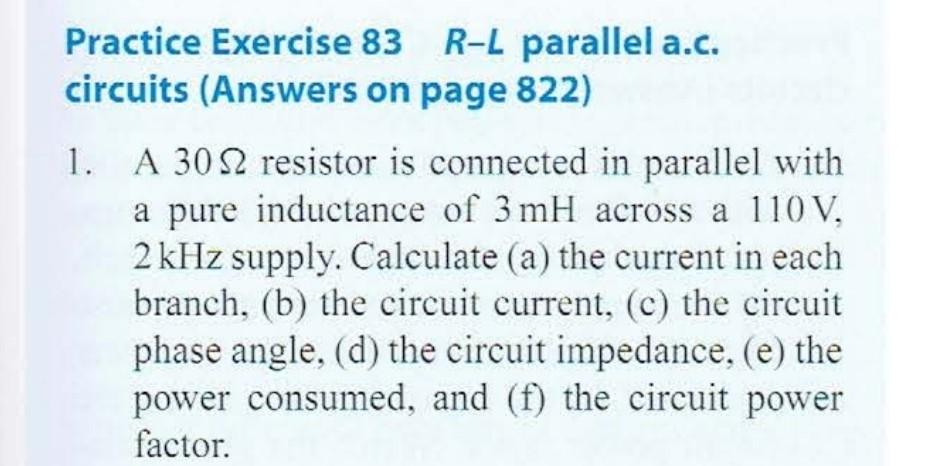

Practice Exercise 83 R L Parallel A C Circuits Answers On Page 822 1 A 3082 Resistor Is Connected In Parallel With A 1
Practice Exercise 83 R L Parallel A C Circuits Answers On Page 822 1 A 3082 Resistor Is Connected In Parallel With A 1 (55.19 KiB) Viewed 55 times
Practice Exercise 83 R-L parallel a.c. circuits (Answers on page 822) 1. A 3082 resistor is connected in parallel with a pure inductance of 3 mH across a 110 V, 2 kHz supply. Calculate (a) the current in each branch, (b) the circuit current, (c) the circuit phase angle, (d) the circuit impedance, (e) the power consumed, and (f) the circuit power factor.
