Q#3: For the feedback amplifier shown in Figure below: 1. Describe the circuit operation in details? (2 Points) 2. Find

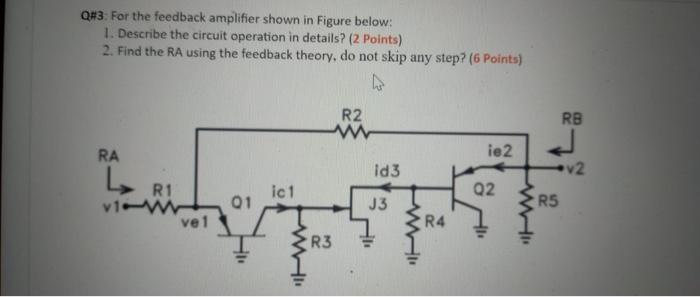

Q#3: For the feedback amplifier shown in Figure below: 1. Describe the circuit operation in details? (2 Points) 2. Find the RA using the feedback theory, do not skip any step? (6 Points) R2 w RB RA ie 2 LRU id3 2 ic 1 Q2 vW 01 J3 R5 ។ [] ve 1 R4 R3
