[06 marks] 6 (a) Calculate the DC quiescent conditions for the circuit shown in Figure Q.B5 if hfe = 200. 7 (Note: 1 mar
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
[06 marks] 6 (a) Calculate the DC quiescent conditions for the circuit shown in Figure Q.B5 if hfe = 200. 7 (Note: 1 mar

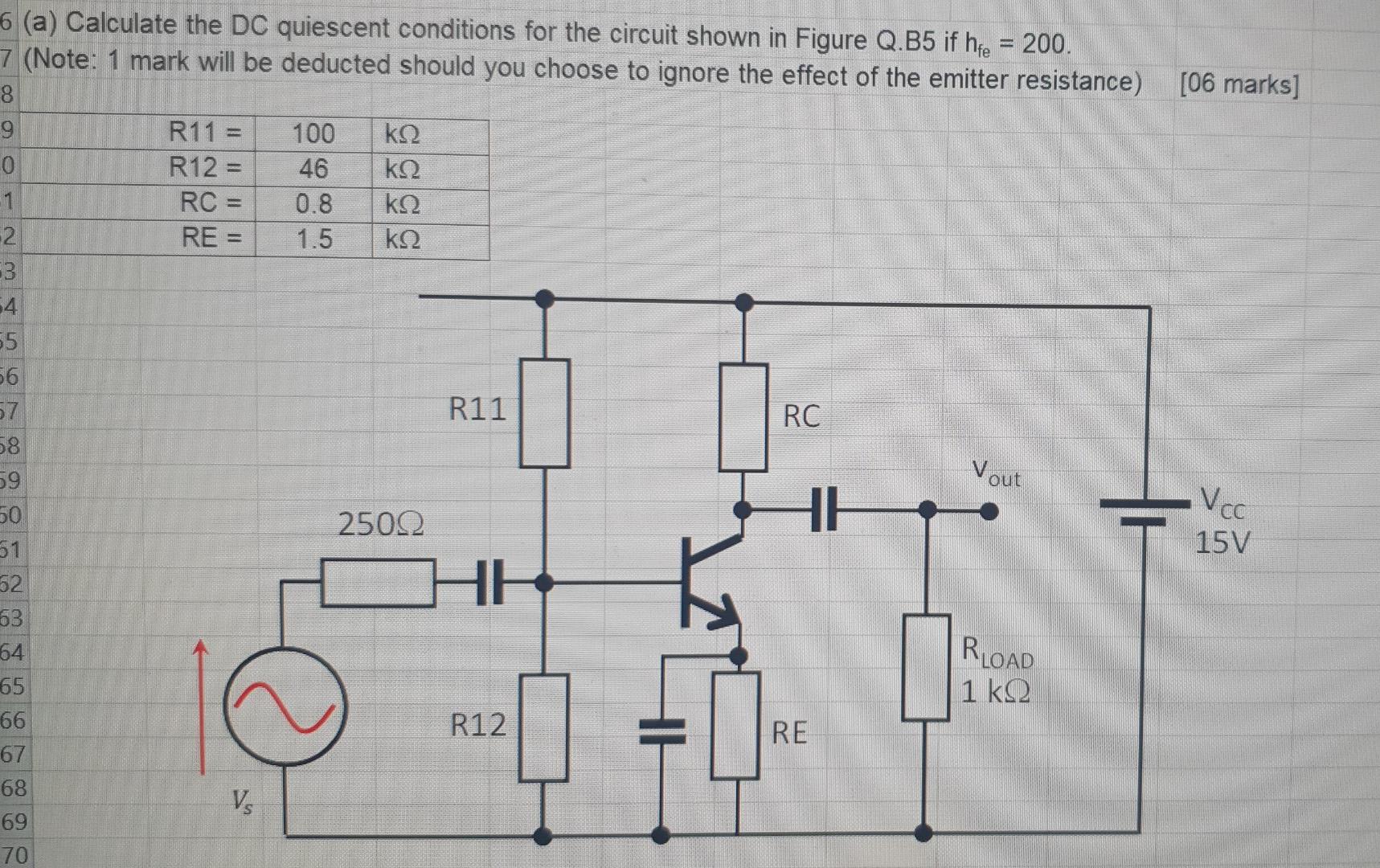

[06 marks] 6 (a) Calculate the DC quiescent conditions for the circuit shown in Figure Q.B5 if hfe = 200. 7 (Note: 1 mark will be deducted should you choose to ignore the effect of the emitter resistance) 8 R11 = 100 ΚΩ 0 R12 = 46 ΚΩ 1 RCE 0.8 ΚΩ 2 RE = 1.5 ΚΩ 3 4 65 56 57 R11 RC 58 59 50 25092 HH 51 52 63 64 65 1 ΚΩ 66 R12 RE 67 68 69 Vout V cc 15V RLOAD Vs 70
