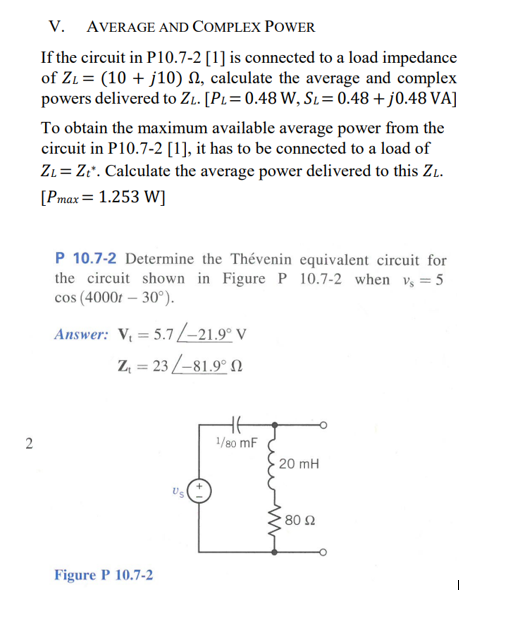

V. AVERAGE AND COMPLEX POWER If the circuit in P10.7-2 [1] is connected to a load impedance of Z1 = (10 + j10) 2, calculate the average and complex powers delivered to Z.. [Pu=0.48 W, Su= 0.48 + j0.48 VA] To obtain the maximum available average power from the circuit in P10.7-2 [1], it has to be connected to a load of Zu= Zi*. Calculate the average power delivered to this ZL. [Pmax = 1.253 W] P 10.7-2 Determine the Thévenin equivalent circuit for the circuit shown in Figure P 10.7-2 when vs = 5 cos (40001 - 30°). Answer: Vi = 5.7 Z-21.9° V Z = 23 Z-81.92 2 1/80 m 20 mH 80 Ω Figure P 10.7-2
