3 (a) A chemical reactor has three sensors indicating the following conditions: 10 Page 1 of 2 (1) Pressure (P) is low o

[answerhappygod]

3 A A Chemical Reactor Has Three Sensors Indicating The Following Conditions 10 Page 1 Of 2 1 Pressure P Is Low O 1 (27.6 KiB) Viewed 78 times

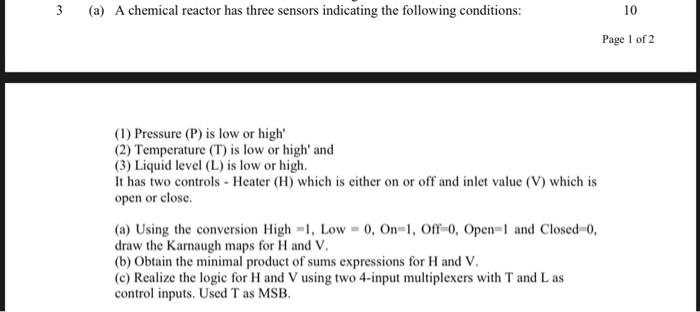

3 (a) A chemical reactor has three sensors indicating the following conditions: 10 Page 1 of 2 (1) Pressure (P) is low or high (2) Temperature (T) is low or high' and (3) Liquid level (L) is low or high. It has two controls - Heater (H) which is either on or off and inlet value (V) which is open or close. (a) Using the conversion High =1, Low - 0, On-1, off-0, Open=1 and Closed-0. draw the Karnaugh maps for H and V. (b) Obtain the minimal product of sums expressions for H and V. (c) Realize the logic for H and V using two 4-input multiplexers with T and Las control inputs, Used T as MSB.
