Control system problem
I have trouble understanding the concepts so please explain
every step with details such as equations or concepts used
Control System Problem I Have Trouble Understanding The Concepts So Please Explain Every Step With Details Such As Equat 1 (20.44 KiB) Viewed 61 times

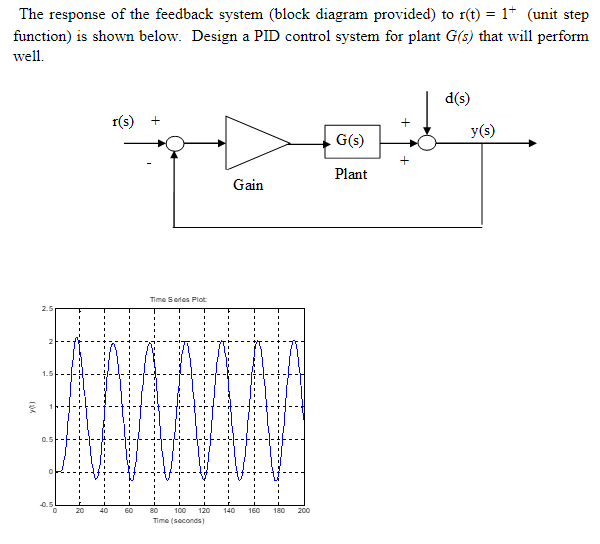

The response of the feedback system (block diagram provided) to r(t) = 1* (unit step function) is shown below. Design a PID control system for plant G(s) that will perform well. ds) r(s) + + y(s) G(s) Plant Gain Time Soros Plot 0.5 0 20 40 60 140 160 180 200 80 100 120 Time (seconds)
