Q1. For the following filter circuit in Figure 1: find the transfer function H(s) and draw the magnitude of H(s) versus

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Q1. For the following filter circuit in Figure 1: find the transfer function H(s) and draw the magnitude of H(s) versus

Post by answerhappygod »

Q1 For The Following Filter Circuit In Figure 1 Find The Transfer Function H S And Draw The Magnitude Of H S Versus 1
Q1 For The Following Filter Circuit In Figure 1 Find The Transfer Function H S And Draw The Magnitude Of H S Versus 1 (74.7 KiB) Viewed 65 times
please solve all questions ASAP

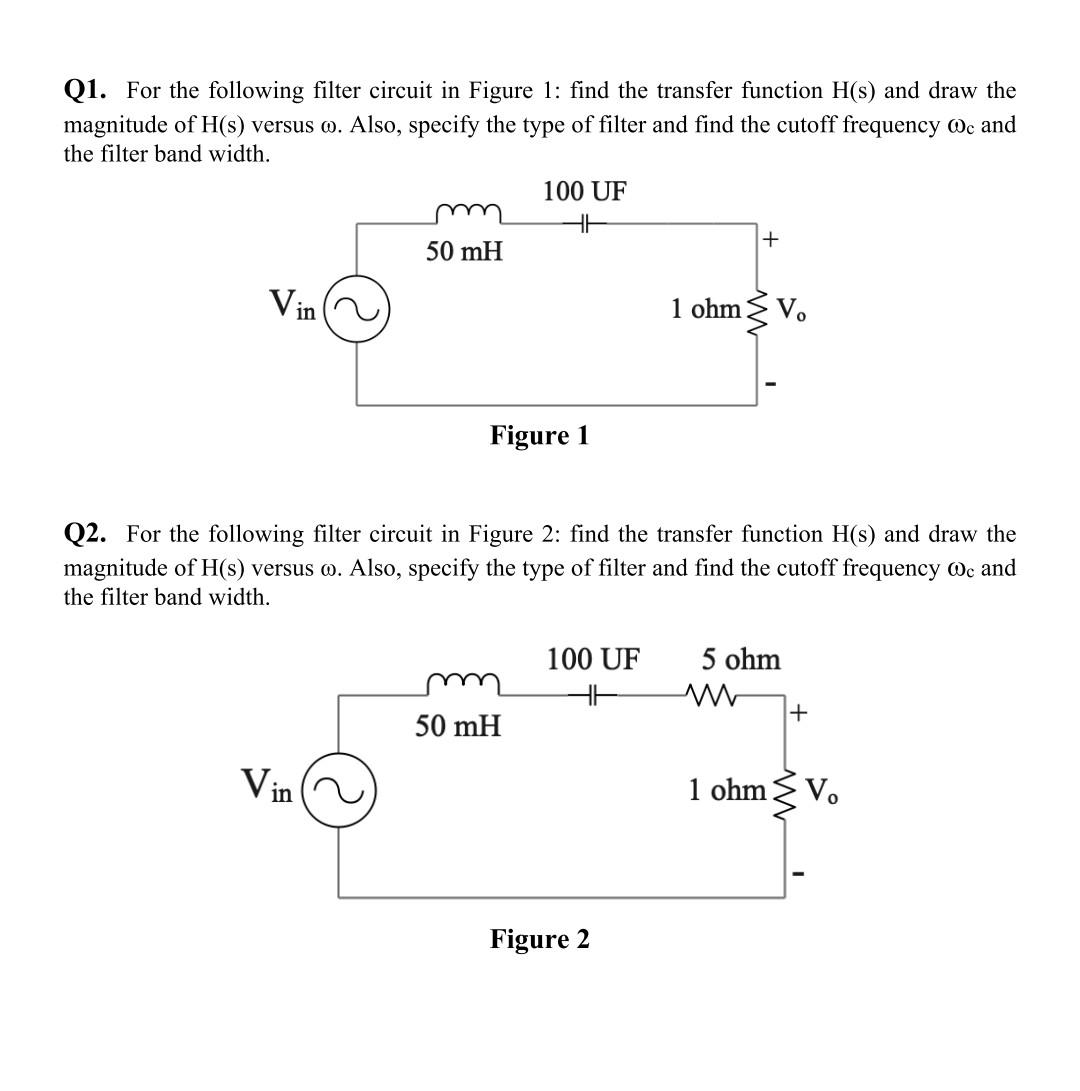

Q1. For the following filter circuit in Figure 1: find the transfer function H(s) and draw the magnitude of H(s) versus o. Also, specify the type of filter and find the cutoff frequency Oc and the filter band width. 100 UF HH 50 mH + Vin 1 ohm V. Figure 1 Q2. For the following filter circuit in Figure 2: find the transfer function H(s) and draw the magnitude of H(s) versus o. Also, specify the type of filter and find the cutoff frequency Oc and the filter band width. m 50 mH 100 UF HH 5 ohm w + Vin 1 ohm V. Figure 2
