1) Please connect the JK-FF operation and fill up the following truth table. The CLK will be made by using RS-FF. To fin

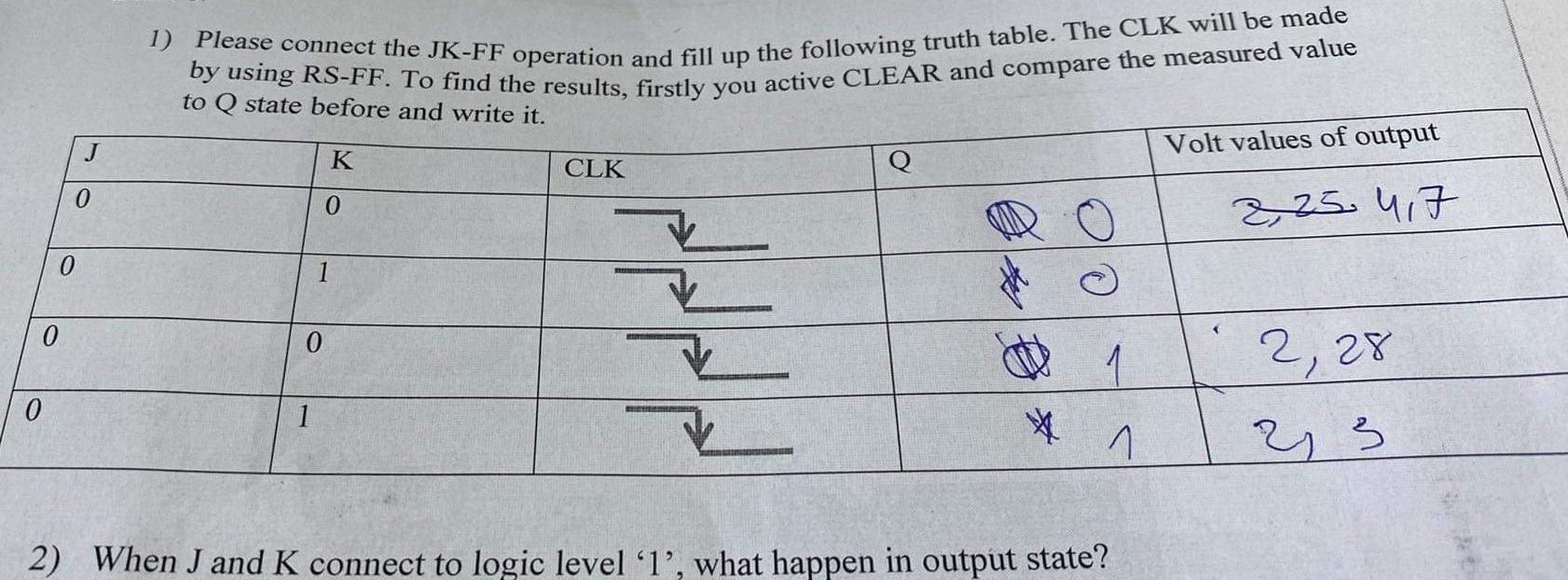

1) Please connect the JK-FF operation and fill up the following truth table. The CLK will be made by using RS-FF. To find the results, firstly you active CLEAR and compare the measured value to Q state before and write it. Volt values of output K CLK J Q 0 2,25 4,7 0 1 0 0 1 2,28 2 3 0 1 以 1 2) When J and K connect to logic level “1', what happen in output state?
