+VOD .Ro (16 points) V. For the circuit of given figure, if Ip(on) = 8 mA, VGs(on) = 5 V, VGs(th) = 3 V, Vpp = 30 V, R1
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
+VOD .Ro (16 points) V. For the circuit of given figure, if Ip(on) = 8 mA, VGs(on) = 5 V, VGs(th) = 3 V, Vpp = 30 V, R1

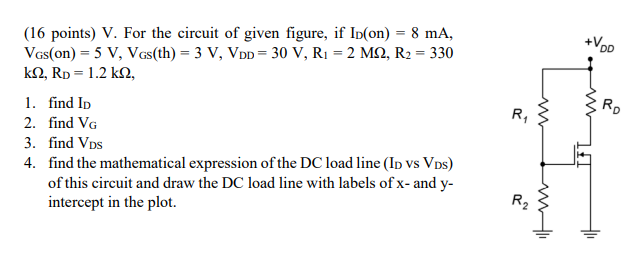

+VOD .Ro (16 points) V. For the circuit of given figure, if Ip(on) = 8 mA, VGs(on) = 5 V, VGs(th) = 3 V, Vpp = 30 V, R1 = 2 MN, R2 = 330 k. 2, Rp = 1.2 k22, 1. find ID 2. find VG 3. find Vps 4. find the mathematical expression of the DC load line (Ip vs Vps) of this circuit and draw the DC load line with labels of x- and y- intercept in the plot. R, UL w R2
