An electrical power system network in distribution system has experienced fault problem. Apparently, the fault has cause
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
An electrical power system network in distribution system has experienced fault problem. Apparently, the fault has cause

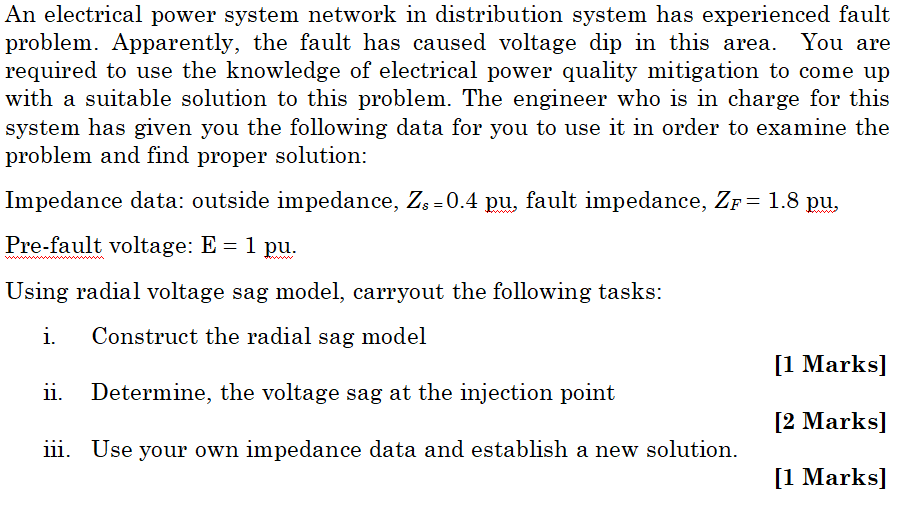

An electrical power system network in distribution system has experienced fault problem. Apparently, the fault has caused voltage dip in this area. required to use the knowledge of electrical power quality mitigation to come up with a suitable solution to this problem. The engineer who is in charge for this system has given you the following data for you to use it in order to examine the problem and find proper solution: Impedance data: outside impedance, Zs=0.4 pu, fault impedance, ZF= 1.8 pu, Pre-fault voltage: E = 1 pu. Using radial voltage sag model, carryout the following tasks: i. Construct the radial sag model [1 Marks] ii. Determine, the voltage sag at the injection point [2 Marks] iii. Use your own impedance data and establish a new solution. [1 Marks]
