Problem: For the series RL circuit shown, two voltage probes are connected to the circuit. The input and output waveform

Post by answerhappygod »

Problem For The Series Rl Circuit Shown Two Voltage Probes Are Connected To The Circuit The Input And Output Waveform 1
Problem For The Series Rl Circuit Shown Two Voltage Probes Are Connected To The Circuit The Input And Output Waveform 1 (58.2 KiB) Viewed 53 times

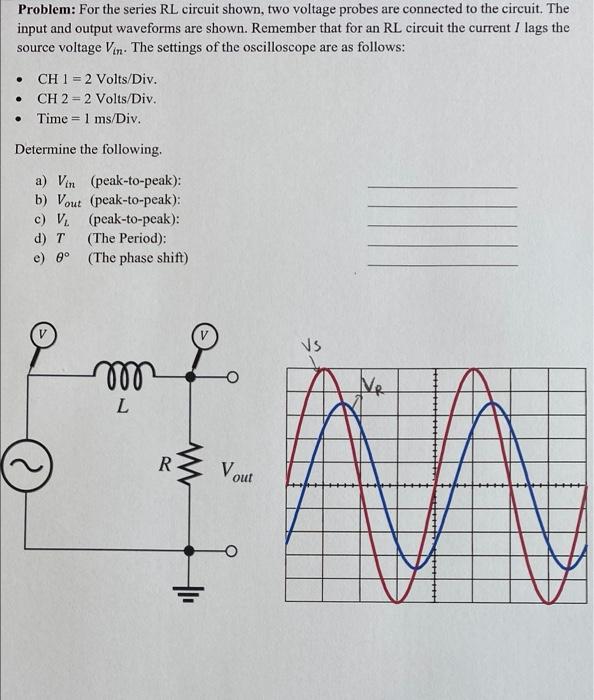

Problem: For the series RL circuit shown, two voltage probes are connected to the circuit. The input and output waveforms are shown. Remember that for an RL circuit the current I lags the source voltage Vin. The settings of the oscilloscope are as follows: . CH 1 = 2 Volts/Div. • CH2=2 Volts/Div. Time = 1 ms/Div. Determine the following. a) Vin (peak-to-peak): b) Vout (peak-to-peak): c) V (peak-to-peak): d) T (The Period): e) (The phase shift) vs m Ne L R w Vout M
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
