For the network shown in Figure Q1, calculate the value of load resistance (R.) that will transfer maximum power from so

Post by answerhappygod »

For The Network Shown In Figure Q1 Calculate The Value Of Load Resistance R That Will Transfer Maximum Power From So 1
For The Network Shown In Figure Q1 Calculate The Value Of Load Resistance R That Will Transfer Maximum Power From So 1 (44.14 KiB) Viewed 60 times

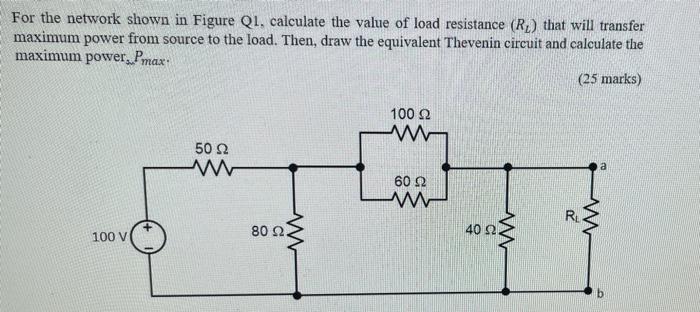

For the network shown in Figure Q1, calculate the value of load resistance (R.) that will transfer maximum power from source to the load. Then, draw the equivalent Thevenin circuit and calculate the maximum power, Pmax. (25 marks) 10022 W 50 22 w a 6022 w RL 80 Ω. 40 Ω. 100 V
