A hanging weight, with a mass of my = 0.350 kg, is attached by a cord to a block with mass m2 = 0.810 kg as shown in the

[answerhappygod]

A Hanging Weight With A Mass Of My 0 350 Kg Is Attached By A Cord To A Block With Mass M2 0 810 Kg As Shown In The 1 (68.33 KiB) Viewed 78 times

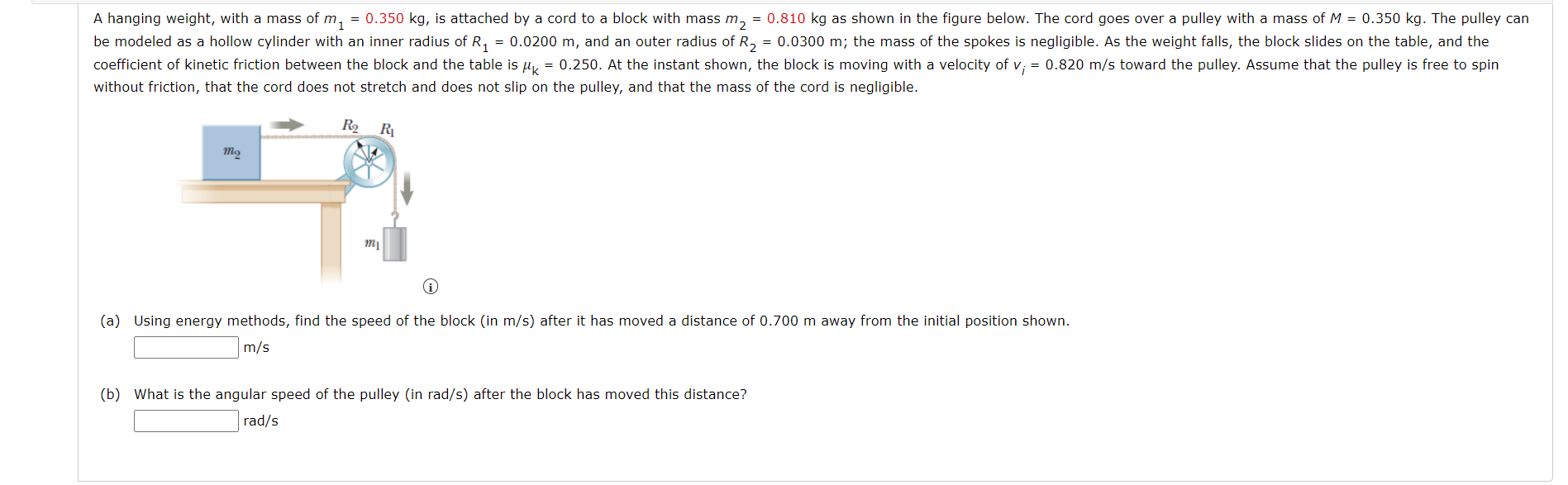

A hanging weight, with a mass of my = 0.350 kg, is attached by a cord to a block with mass m2 = 0.810 kg as shown in the figure below. The cord goes over a pulley with a mass of M = 0.350 kg. The pulley can be modeled as a hollow cylinder with an inner radius of R2 = 0.0200 m, and an outer radius of R2 = 0.0300 m; the mass of the spokes is negligible. As the weight falls, the block slides on the table, and the coefficient of kinetic friction between the block and the table is Uk = 0.250. At the instant shown, the block is moving with a velocity of v; = 0.820 m/s toward the pulley. Assume that the pulley is free to spin without friction, that the cord does not stretch and does not slip on the pulley, and that the mass of the cord is negligible. R2 RE m2 mi (a) Using energy methods, find the speed of the block (in m/s) after it has moved a distance of 0.700 m away from the initial position shown. m/s (b) What is the angular speed of the pulley (in rad/s) after the block has moved this distance? rad/s
