7. A resistor of 6 12, a capacitor of 300 uF and an inductor of 5 mH are connected in series. If an AC power supply of f

Post by answerhappygod »

7 A Resistor Of 6 12 A Capacitor Of 300 Uf And An Inductor Of 5 Mh Are Connected In Series If An Ac Power Supply Of F 1
7 A Resistor Of 6 12 A Capacitor Of 300 Uf And An Inductor Of 5 Mh Are Connected In Series If An Ac Power Supply Of F 1 (80.65 KiB) Viewed 51 times

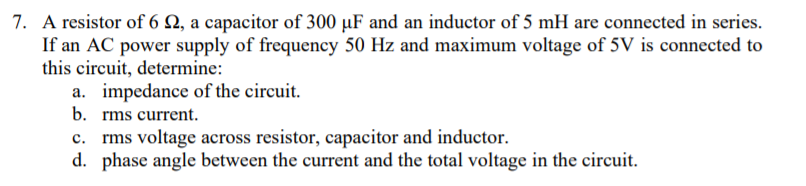

7. A resistor of 6 12, a capacitor of 300 uF and an inductor of 5 mH are connected in series. If an AC power supply of frequency 50 Hz and maximum voltage of 5V is connected to this circuit, determine: a. impedance of the circuit. b. rms current. c. rms voltage across resistor, capacitor and inductor. d. phase angle between the current and the total voltage in the circuit.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
