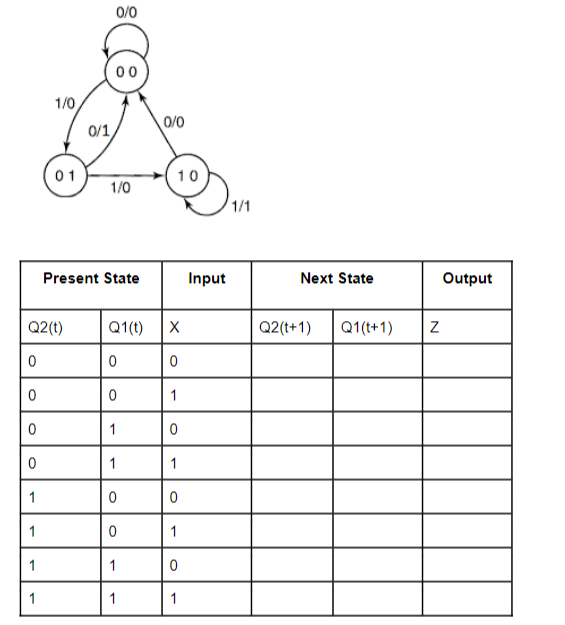

3a. Convert the following state diagram into a state table.
3a Convert The Following State Diagram Into A State Table 3b Use K Maps To Design The Next State Logic Equations For 1 (36.35 KiB) Viewed 31 times
3b. Use K-maps to design the next state logic equations for D2
and D1, also use K-map to design the output logic equation for Z in
part 3a.
3c. Draw the final sequential circuit based on the design
results from part 3a and 3b.
0/0 00 1/0 0/1 0/0 01 10 1/0 1/1 Present State Input Next State Output Q2(t) Q1(t) X Q2(t+1) Q1(t+1) Z 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 0 1 1 1 0 1 1 1
