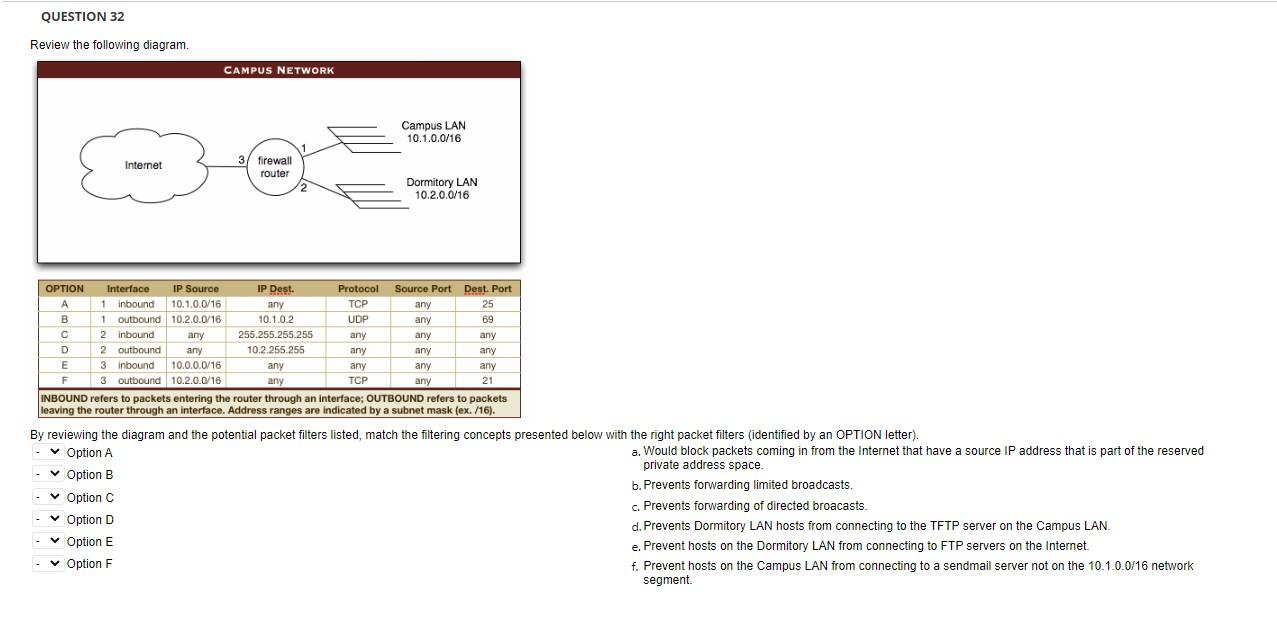

QUESTION 32 Review the following diagram. CAMPUS NETWORK Campus LAN 10.1.0.0/16 Internet 3 firewall router 2 Dormitory L

[answerhappygod]

Question 32 Review The Following Diagram Campus Network Campus Lan 10 1 0 0 16 Internet 3 Firewall Router 2 Dormitory L 1 (75.4 KiB) Viewed 48 times

QUESTION 32 Review the following diagram. CAMPUS NETWORK Campus LAN 10.1.0.0/16 Internet 3 firewall router 2 Dormitory LAN 10.2.0.0/16 OPTION Interface IP Source IP Dest. Protocol Source Port Dest. Port А 1 inbound 10.1.0.0/16 any TCP any 25 1 outbound 10.2.0.0/16 10.1.0.2 UDP any 69 с 2 inbound any 255.255.255.255 any any any D 2 outbound any 10.2.255.255 any any any E 3 Inbound 10.0.0.0/16 any any any any F 3 outbound 10.2.0.0/16 any TCP any 21 INBOUND refers to packets entering the router through an interface; OUTBOUND refers to packets leaving the router through an interface. Address ranges are indicated by a subnet mask /16). By reviewing the diagram and the potential packet filters listed, match the filtering concepts presented below with the right packet filters (identified by an OPTION letter). Option A a. Would block packets coming in from the Internet that have a source IP address that is part of the reserved ✓ Option B private address space. b. Prevents forwarding limited broadcasts. Optionc c. Prevents forwarding of directed broacasts. Option D D d. Prevents Dormitory LAN hosts from connecting to the TFTP server on the Campus LAN. Option E e. Prevent hosts on the Dormitory LAN from connecting to FTP servers on the Internet Option F f. Prevent hosts on the Campus LAN from connecting to a sendmail server not on the 10.1.0.0/16 network segment
