Spring 2022 10 (a) (4 pts) We need to implement a 9-bit shift register using the below logic block. What is the minimum

[answerhappygod]

Spring 2022 10 A 4 Pts We Need To Implement A 9 Bit Shift Register Using The Below Logic Block What Is The Minimum 1 (49.41 KiB) Viewed 53 times

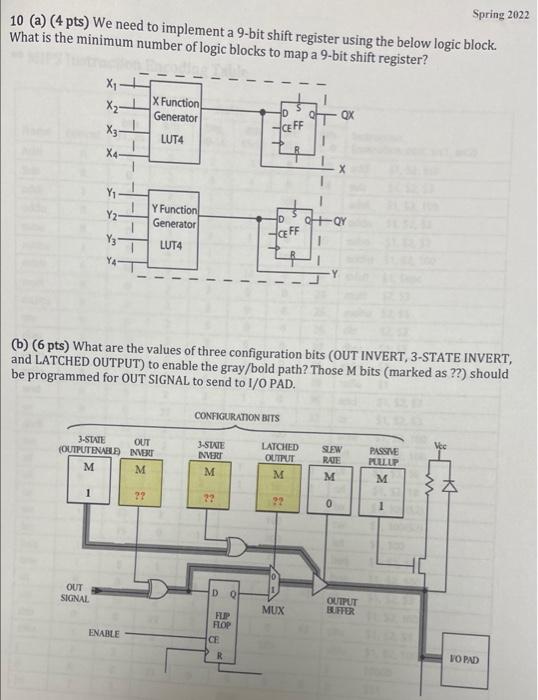

Spring 2022 10 (a) (4 pts) We need to implement a 9-bit shift register using the below logic block. What is the minimum number of logic blocks to map a 9-bit shift register? X1 X₂ X3- X Function Generator ox CEFF LUT4 Y Function Generator T -QY CEFF LUTA (b) (6 pts) What are the values of three configuration bits (OUT INVERT, 3-STATE INVERT, and LATCHED OUTPUT) to enable the gray/bold path? Those M bits (marked as ??) should be programmed for OUT SIGNAL to send to 1/0 PAD. CONFIGURATION BITS 3-STATE OUT (OUTPUT ENABL) NVERE M M 3-STATE INVERT M LATCHED OUTPUT SEW RAIE M PASSIVE PULLUP M M 22 22 92 0 1 OUT SIGNAL D Q MUX OUTPUT BUFFER ENABLE FLP FLOP CE R VOPAD
