; The Calculator, Main Algorithm
;
LEA R6,StackBase ; Initialize the Stack.
ADD R6,R6,#0 ; R6 is stack pointer
LEA R0,PromptMsg
PUTS
GETC
OUT
;
; Check the command
;
Test LD R1,NegX ; Check for X entered
ADD R1,R1,R0
BRz Exit
;
LD R1,NegC ; Check for C entered
ADD R1,R1,R0
BRz OpClear ; See Figure 10.27 page 283
;
LD R1,NegPlus ; Check for + entered
ADD R1,R1,R0
BRz OpAdd ; See Figure 10.9 page 267
;
LD R1,NegMult ; Check for *
ADD R1,R1,R0
BRz OpMult ; See Figure 10.14 page 271
;
LD R1,NegMinus ; Check for - entered
ADD R1,R1,R0
BRz OpNeg ; See Figure 10.15 page 272
;
LD R1,NegD ; Check for D entered
ADD R1,R1,R0
BRz OpDisplay ;
;
; Then we must be entering an integer
;
BRnzp PushValue ; See Figure 10.25 page 282
;
NewCommand LEA R0,PromptMsg
PUTS
GETC
OUT
BRnzp Test
Exit HALT
PromptMsg .FILL x000A
.STRINGZ "Enter a command:"
NegX .FILL xFFA8
NegC .FILL xFFBD
NegPlus .FILL xFFD5
NegMinus .FILL xFFD3
NegMult .FILL xFFD6
NegD .FILL xFFBC
; This algorithm takes a sequence of ASCII digits typed by the
user,
; converts it into a binary value by calling the
ASCIItoBinary
; subroutine and pushes the binary value onto the stack.
;
PushValue LEA R1,ASCIIBUFF ; R1 points to string being
LD R2,MaxDigits ; generated
;
ValueLoop ADD R3,R0,xFFF6 ; Test for carriage return
BRz GoodInput
ADD R2,R2,#0
BRz TooLargeInput
ADD R2,R2,#-1 ; Still room for more digits
STR R0,R1,#0 ; Store last character read
ADD R1,R1,#1
GETC
OUT ; Echo it
BRnzp ValueLoop
;
GoodInput LEA R2,ASCIIBUFF
NOT R2,R2
ADD R2,R2,#1
ADD R1,R1,R2 ; R1 now contains no. of char.
JSR ASCIItoBinary
JSR PUSH
BRnzp NewCommand
;
TooLargeInput GETC ; Spin until carriage return
OUT
ADD R3,R0,xFFF6
BRnp TooLargeInput
LEA R0,TooManyDigits
PUTS
BRnzp NewCommand
TooManyDigits .FILL x000A
.STRINGZ "Too many digits"
MaxDigits .FILL x0003
;
; This routine clears the stack by resetting the stack pointer
(R6).
;
OpClear LEA R6,StackBase ; Initialize the Stack.
BRnzp NewCommand
;
; Routine to pop the top two elements from the stack,
; add them, and push the sum onto the stack. R6 is
; the stack pointer.
;
OpAdd JSR POP ; Get first source operand.
ADD R5,R5,#0 ; Test if POP was successful.
BRp ExitOA ; Branch if not successful.
ADD R1,R0,#0 ; Make room for second operand
JSR POP ; Get second source operand.
ADD R5,R5,#0 ; Test if POP was successful.
BRp Restore1 ; Not successful, put back first.
ADD R0,R0,R1 ; THE Add.
JSR RangeCheck ; Check size of result.
BRp Restore2 ; Out of range, restore both.
JSR PUSH ; Push sum on the stack.
BRnzp NewCommand ; On to the next task...
Restore2 ADD R6,R6,#-1 ; Decrement stack pointer.
Restore1 ADD R6,R6,#-1 ; Decrement stack pointer.
ExitOA BRnzp NewCommand
;
; Algorithm to pop two values from the stack, multiply them
; and if their product is within the acceptable range, push
; the result on the stack. R6 is stack pointer.
;
OpMult AND R3,R3,#0 ; R3 holds sign of multiplier.
JSR POP ; Get first source from stack.
ADD R5,R5,#0 ; Test for successful POP
BRp ExitOM ; Failure
ADD R1,R0,#0 ; Make room for next POP
JSR POP ; Get second source operand
ADD R5,R5,#0 ; Test for successful POP
BRp Restore1OM ; Failure; restore first POP
ADD R2,R0,#0 ; Moves multiplier, tests sign
BRzp PosMultiplier
ADD R3,R3,#1 ; Sets FLAG: Multiplier is neg
NOT R2,R2
ADD R2,R2,#1 ; R2 contains -(multiplier)
PosMultiplier AND R0,R0,#0 ; Clear product register
ADD R2,R2,#0
BRz PushMult ; Multiplier = 0, Done.
;
MultLoop ADD R0,R0,R1 ; THE actual "multiply"
ADD R2,R2,#-1 ; Iteration Control
BRp MultLoop
;
JSR RangeCheck
ADD R5,R5,#0 ; R5 contains success/failure
BRp Restore2OM
;
ADD R3,R3,#0 ; Test for negative multiplier
BRz PushMult
NOT R0,R0 ; Adjust for
ADD R0,R0,#1 ; sign of result
PushMult JSR PUSH ; Push product on the stack.
BRnzp NewCommand
Restore2OM ADD R6,R6,#-1 ; Adjust stack pointer.
Restore1OM ADD R6,R6,#-1 ; Adjust stack pointer.
ExitOM BRnzp NewCommand
; Algorithm to pop the top of the stack, form its negative,
; and push the result on the stack.
;
OpNeg JSR POP ; Get the source operand
ADD R5,R5,#0 ; test for successful pop
BRp ExitON ; Branch if failure
NOT R0,R0
ADD R0,R0,#1 ; Form the negative of the source.
JSR PUSH ; Push the result on the stack.
ExitON BRnzp NewCommand
;
; Routine to check that the magnitude of a value is
; between -999 and +999.
;
RangeCheck LD R5,Neg999
ADD R4,R0,R5 ; Recall that R0 contains the
BRp BadRange ; result being checked.
LD R5,Pos999
ADD R4,R0,R5
BRn BadRange
AND R5,R5,#0 ; R5 <-- success
RET
BadRange ST R7,Save ; R7 is needed by TRAP/RET
LEA R0,RangeErrorMsg
TRAP x22 ; Output character string
LD R7,Save
AND R5,R5,#0 ;
ADD R5,R5,#1 ; R5 <-- failure
RET
Neg999 .FILL #-999
Pos999 .FILL #999
Save .FILL x0000
RangeErrorMsg .FILL x000A
.STRINGZ "Error: Number is out of range."
;
; This algorithm calls BinarytoASCII to convert the 2's
complement
; number on the top of the stack into an ASCII character string,
and
; then calls PUTS to display that number on the screen.
OpDisplay JSR POP ; R0 gets the value to be displayed
ADD R5,R5,#0
BRp NewCommand ; POP failed, nothing on the stack.
JSR BinarytoASCII
LD R0,NewlineChar
OUT
LEA R0,ASCIIBUFF
PUTS
BRnzp NewCommand
NewlineChar .FILL x000A
ASCIIBUFF .BLKW 4
BUFFEREND .FILL x0000 ; needed to force x0000 at end of
ASCIIBUFF
;
; This algorithm POPs a value from the stack and puts it in
; R0 before returning to the calling program. R5 is used to
; report success (R5=0) or failure (R5=1) of the POP
operation.
POP LEA R0,StackBase
NOT R0,R0
ADD R0,R0,#1 ; R0 = -(addr.ofStackBase -1)
ADD R0,R0,R6 ; R6 = StackPointer
BRz Underflow
LDR R0,R6,#0 ; The actual POP
ADD R6,R6,#1 ; Adjust StackPointer
AND R5,R5,#0 ; R5 <-- success
RET
Underflow ST R7,SaveR7 ; TRAP/RET needs R7
LEA R0,UnderflowMsg
PUTS ; Print error message.
LD R7,SaveR7 ; Restore R7
AND R5,R5,#0
ADD R5,R5,#1 ; R5 <-- failure
RET
SaveR7 .FILL x0000
StackMax .BLKW 10
StackBase .FILL x0000
UnderflowMsg .FILL x000A
.STRINGZ "Error: Too Few Values on the Stack."
; This algorithm PUSHes on the stack the value stored in R0.
; R5 is used to report success (R5=0) or failure (R5=1) of
; the PUSH operation.
;
PUSH ST R1,Save1 ; R1 is needed by this routine
LEA R1,StackMax
NOT R1,R1
ADD R1,R1,#1 ; R1 = - addr. of StackMax
ADD R1,R1,R6 ; R6 = StackPointer
BRz Overflow
ADD R6,R6,#-1 ; Adjust StackPointer for PUSH
STR R0,R6,#0 ; The actual PUSH
BRnzp Success_exit
Overflow ST R7,Save7PUSH
LEA R0,OverflowMsg
PUTS
LD R7,Save7PUSH
LD R1, Save1 ; Restore R1
AND R5,R5,#0
ADD R5,R5,#1 ; R5 <-- failure
RET
Success_exit LD R1,Save1 ; Restore R1
AND R5,R5,#0 ; R5 <-- success
RET
Save7PUSH .FILL x0000
Save1 .FILL x0000
OverflowMsg .STRINGZ "Error: Stack is Full."
;
; This algorithm takes an ASCII string of three decimal digits
and
; converts it into a binary number. R0 is used to collect the
result.
; R1 keeps track of how many digits are left to process.
ASCIIBUFF
; contains the most significant digit in the ASCII string.
;
ASCIItoBinary AND R0,R0,#0 ; R0 will be used for our result
ADD R1,R1,#0 ; Test number of digits.
BRz DoneAtoB ; There are no digits
;
LD R3,NegASCIIOffset ; R3 gets xFFD0, i.e., -x0030
LEA R2,ASCIIBUFF
ADD R2,R2,R1
ADD R2,R2,#-1 ; R2 now points to "ones" digit
;
LDR R4,R2,#0 ; R4 <-- "ones" digit
ADD R4,R4,R3 ; Strip off the ASCII template
ADD R0,R0,R4 ; Add ones contribution
;
ADD R1,R1,#-1
BRz DoneAtoB ; The original number had one digit
ADD R2,R2,#-1 ; R2 now points to "tens" digit
;
LDR R4,R2,#0 ; R4 <-- "tens" digit
ADD R4,R4,R3 ; Strip off ASCII template
LEA R5,LookUp10 ; LookUp10 is BASE of tens values
ADD R5,R5,R4 ; R5 points to the right tens value
LDR R4,R5,#0
ADD R0,R0,R4 ; Add tens contribution to total
;
ADD R1,R1,#-1
BRz DoneAtoB ; The original number had two digits
ADD R2,R2,#-1 ; R2 now points to "hundreds" digit
;
LDR R4,R2,#0 ; R4 <-- "hundreds" digit
ADD R4,R4,R3 ; Strip off ASCII template
LEA R5,LookUp100 ; LookUp100 is hundreds BASE
ADD R5,R5,R4 ; R5 points to hundreds value
LDR R4,R5,#0
ADD R0,R0,R4 ; Add hundreds contribution to total
;
DoneAtoB RET
NegASCIIOffset .FILL xFFD0
LookUp10 .FILL #0
.FILL #10
.FILL #20
.FILL #30
.FILL #40
.FILL #50
.FILL #60
.FILL #70
.FILL #80
.FILL #90
;
LookUp100 .FILL #0
.FILL #100
.FILL #200
.FILL #300
.FILL #400
.FILL #500
.FILL #600
.FILL #700
.FILL #800
.FILL #900
;
; This algorithm takes the 2's complement representation of a
signed
; integer, within the range -999 to +999, and converts it into an
ASCII
; string consisting of a sign digit, followed by three decimal
digits.
; R0 contains the initial value being converted.
;
BinarytoASCII LEA R1,ASCIIBUFF ; R1 points to string being
generated
ADD R0,R0,#0 ; R0 contains the binary value
BRn NegSign ;
LD R2,ASCIIplus ; First store the ASCII plus sign
STR R2,R1,#0
BRnzp Begin100
NegSign LD R2,ASCIIminus ; First store ASCII minus sign
STR R2,R1,#0
NOT R0,R0 ; Convert the number to absolute
ADD R0,R0,#1 ; value; it is easier to work with.
;
Begin100 LD R2,ASCIIoffset ; Prepare for "hundreds" digit
;
LD R3,Neg100 ; Determine the hundreds digit
Loop100 ADD R0,R0,R3
BRn End100
ADD R2,R2,#1
BRnzp Loop100
;
End100 STR R2,R1,#1 ; Store ASCII code for hundreds digit
LD R3,Pos100
ADD R0,R0,R3 ; Correct R0 for one-too-many subtracts
;
LD R2,ASCIIoffset ; Prepare for "tens" digit
;
Begin10 LD R3,Neg10 ; Determine the tens digit
Loop10 ADD R0,R0,R3
BRn End10
ADD R2,R2,#1
BRnzp Loop10
;
End10 STR R2,R1,#2 ; Store ASCII code for tens digit
ADD R0,R0,#10 ; Correct R0 for one-too-many subtracts
Begin1 LD R2,ASCIIoffset ; Prepare for "ones" digit
ADD R2,R2,R0
STR R2,R1,#3
RET
;
ASCIIplus .FILL x002B
ASCIIminus .FILL x002D
ASCIIoffset .FILL x0030
Neg100 .FILL xFF9C
Pos100 .FILL x0064
Neg10 .FILL xFFF6
.END ; end of assembly listing

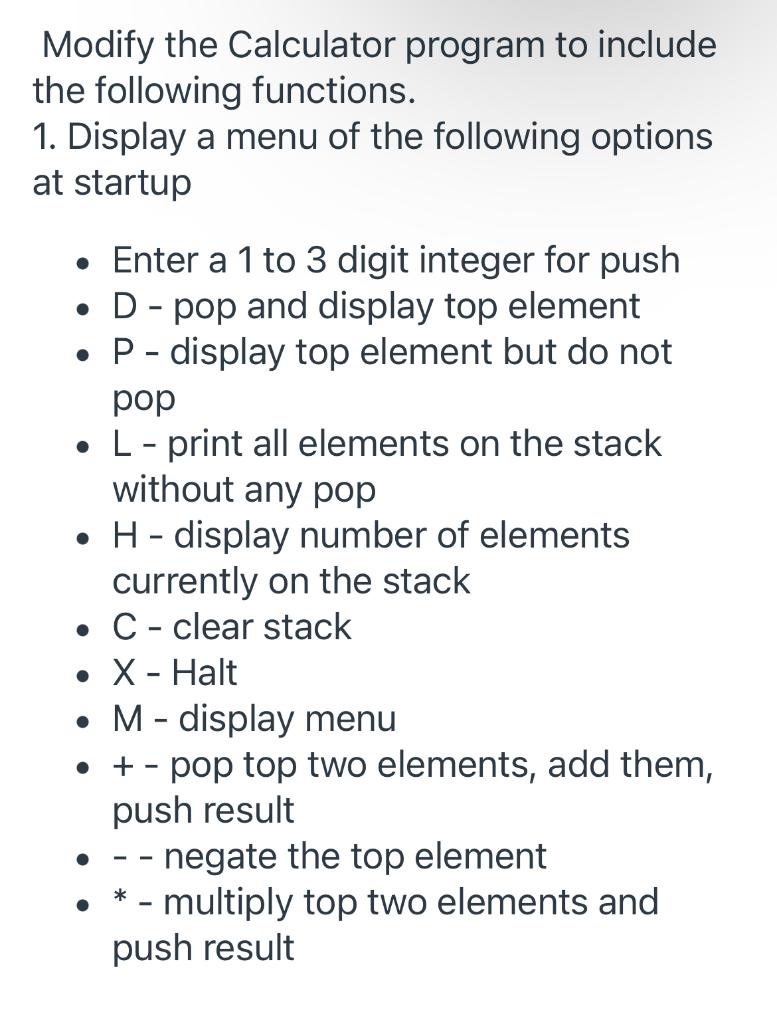

Modify the Calculator program to include the following functions. 1. Display a menu of the following options at startup . . • Enter a 1 to 3 digit integer for push D - pop and display top element P - display top element but do not pop L-print all elements on the stack without any pop H - display number of elements currently on the stack • C-clear stack • X - Halt M - display menu +- pop top two elements, add them, push result - negate the top element - multiply top two elements and push result - . -- . -
