Consider the Dining Philosophers problem. (a) Draw the state transition diagram based on the code in Figure 2-47. (b) Wi

[answerhappygod]

Consider The Dining Philosophers Problem A Draw The State Transition Diagram Based On The Code In Figure 2 47 B Wi 1 (22.18 KiB) Viewed 42 times

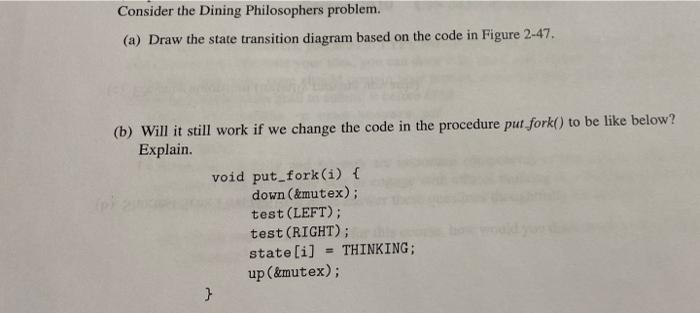

Consider the Dining Philosophers problem. (a) Draw the state transition diagram based on the code in Figure 2-47. (b) Will it still work if we change the code in the procedure put fork() to be like below? Explain. void put_fork(i) { down (&mutex); test (LEFT); test (RIGHT); state THINKING; up (&mutex); }
