Consider the signal shown x[n] defined as follows: x[0] = 1, x[1] = 2 x [2] = 2 x[3] = 4, x[4) = 2,x[5) = 1. Assume that

[answerhappygod]

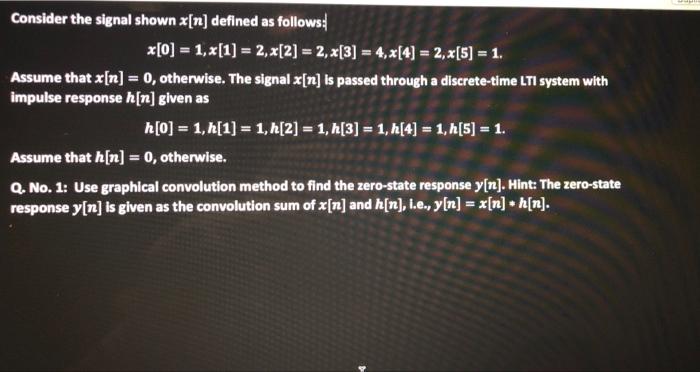

Consider The Signal Shown X N Defined As Follows X 0 1 X 1 2 X 2 2 X 3 4 X 4 2 X 5 1 Assume That 1 (35.67 KiB) Viewed 28 times

Consider the signal shown x[n] defined as follows: x[0] = 1, x[1] = 2 x [2] = 2 x[3] = 4, x[4) = 2,x[5) = 1. Assume that x[n] = 0, otherwise. The signal x[n] is passed through a discrete-time LTI system with impulse response h[n] given as h[0] = 1, h[1] = 1, h[2] = 1, h[3] = 1, h[4] = 1, h[5] = 1. Assume that h[n] = 0, otherwise. Q. No. 1: Use graphical convolution method to find the zero-state response y[n). Hint: The zero-state response y[n] is given as the convolution sum of x[n] and h[n), i.e., y[n] = x[n] *h[n]. =
