Choose the correct answer: 1. Identify the logic gates that can be designed using Emitter Coupled Logic (ECL). a. AND an

[answerhappygod]

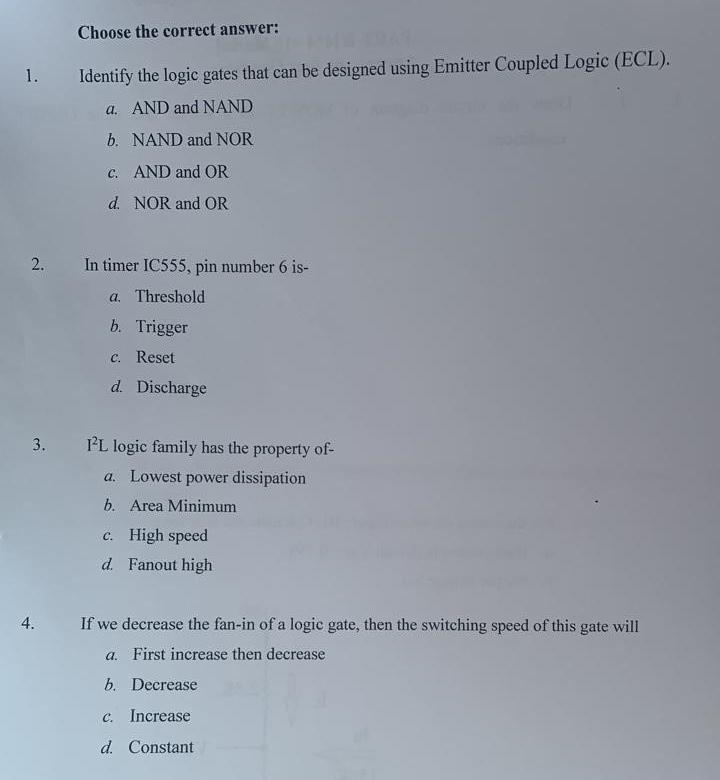

Choose The Correct Answer 1 Identify The Logic Gates That Can Be Designed Using Emitter Coupled Logic Ecl A And An 1 (39.06 KiB) Viewed 73 times

Choose the correct answer: 1. Identify the logic gates that can be designed using Emitter Coupled Logic (ECL). a. AND and NAND b. NAND and NOR C. AND and OR d. NOR and OR 2. In timer IC555, pin number 6 is- a. Threshold b. Trigger c. Reset d. Discharge 3. IL logic family has the property of- a. Lowest power dissipation b. Area Minimum c. High speed d. Fanout high 4. If we decrease the fan-in of a logic gate, then the switching speed of this gate will a. First increase then decrease b. Decrease C. Increase d. Constant
